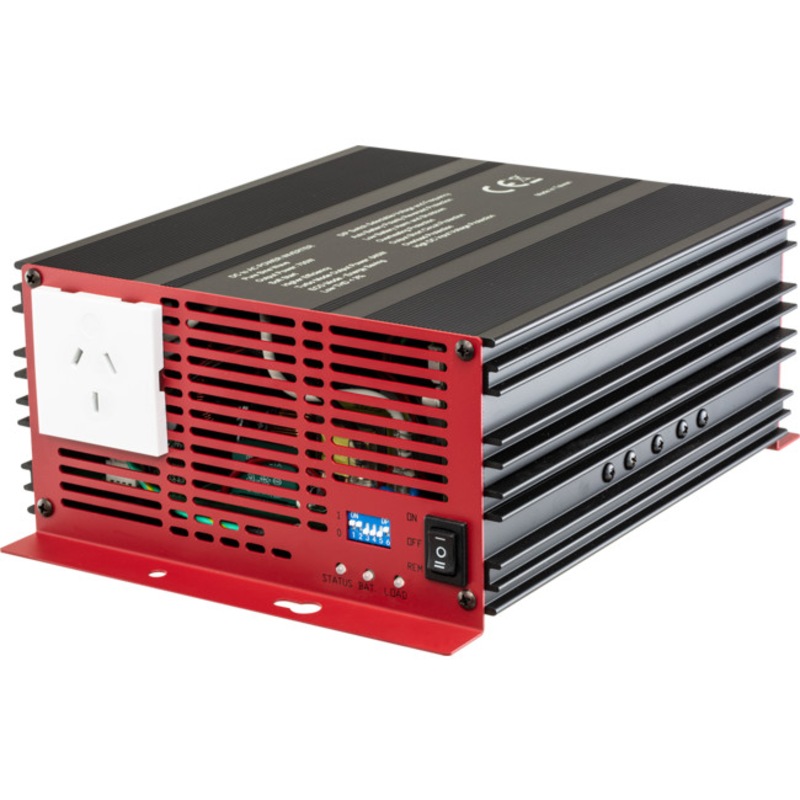

TSI700W 700W TRUE SINE WAVE INVERTER

TSI700W 700W TRUE SINE WAVE INVERTER

SOLD OUT

FEATURES
  • DC input polarity reversed protection: no components will be damaged;
  • Input DC over/under voltage protection;
  • Internal over-temperature protection;
  • Output overload protection;
  • Output short circuit protection;
  • Adjustable AC output voltage and frequency;
  • Fan speed control;
  • ECO mode available: power consumption <1W;
  • Turbo mode available: 120% continuous output power when temperature <30 ? C;
  • High efficiency: max up to 93%;
  • Low THD: <3.0%;
  • With RS232 communication port;
  • With dry contact terminal;
  • Optional remote LCD display controller;
  • Optional regular remote controller;
  • Optional Bluetooth remote controller; (Android system only)
SPECIFICATIONS
Capacity700W
Output Power
Continuous700W
Surge1400W
Turbo Mode840W
Output Voltage200VAC / 220VAC / 230VAC / 240VAC (Dip Switch Selectable)
Output Frequency50Hz / 60Hz (Dip Switch Selectable)
Wave FormPure Sine Wave
THD<3.0% (Normal Voltage * 1.1)
Input Voltage Range
12VDC10.5VDC ~ 16.5VDC
24VDC21.0VDC ~ 33.0VDC
Max Efficiency
12VDC92%
24VDC93%
No Load Power Consumption
12VDC< 1.26A
24VDC< 0.63A
ECO Mode< 1W
High Battery Alarm
12VDC16.0VDC
24VDC32.0VDC
ProtectionDC Input Polarity Reversed / DC UnderVoltage / DC Over Voltage /
Output Short Circuit / Overload / Over Temperature
Environment
Operating Temperature
Storage Temperature
Humidity		-20 ? C ~ 60 ? C (De-rating Begin 40 ? C ~ 60 ? C)
-30 ? C ~ 70 ? C
95%, non-condensing
Dimension (L * W * H) mm210*187*96
Weight (kgs)2.5
Remote Control (Option)Yes
GFCI (Option)Yes
*GFCI receptacles
