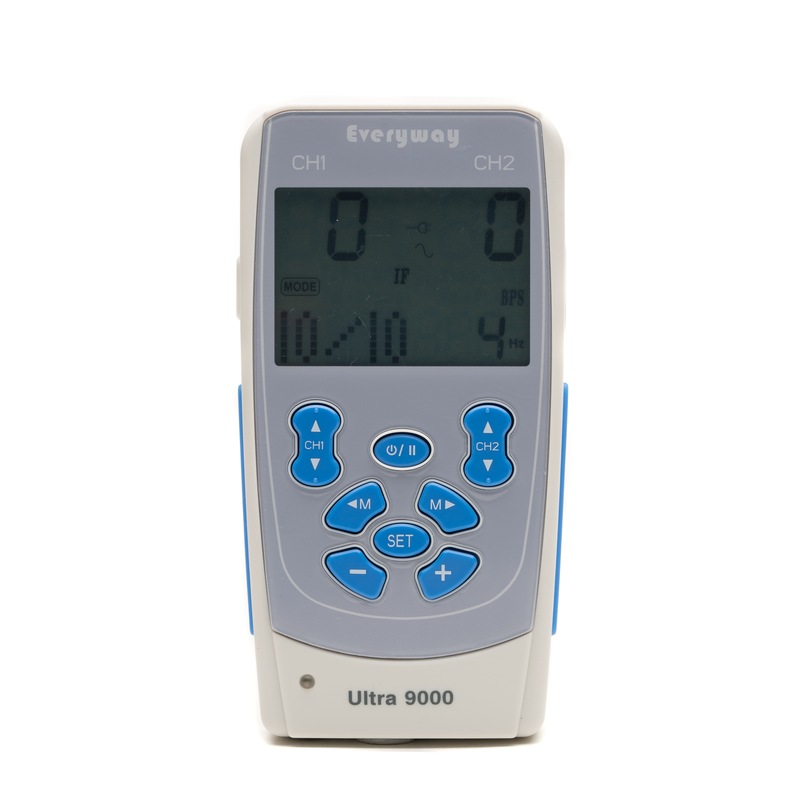

Ultra 9000 tens unit with EMS, Interferential function

Great  top of range model new release,

multifunction combo unit for

PAIN RELIEF, MUSCLE recovery, interferential or optional with vaginal probe for pelvic floor stimulation or facial probes for facial muscle stimulation

This kit includes

ULTRA 9000 unit with 5 year warranty

Blue pouch

AC adaptor to save battery life

9V long life battery

4 electrodes 5/5cm

instruction manual

Placement chart

physio support

Features:

*Large Backlit LCD

*Full Digital Press Buttons Control

*Treatment Time Countdown

*Adjustable Beep Sound

*Lock Facility

*Quick Selection of Modalities and Modes

*Compliance Meter

*99 Steps of Intensity Control

Specifications

Model: EM-9000 Series

Channel: Dual ChannelPower: One 9V Battery or AC Power

Size: 215 grams with battery

Weight:L=135mm W=69mm H=32mm

Modality: TENS, EMS, IF

Mode:

TENS: B, N, M,S1, S2, P(P01-P12) 5 adjustable modes, 12 presets

EMS: C,S,A,P(P01-P12), 3 adjustable modes, 12 presets

IF: C, 1/1,6/6,10/10,SW1,SW2,R,P(P01-P06), 7 adjustable modes,6

presets

*TENS/EMS

Pulse Amplitude: Adjustable, 0-100mA peak into 500 ohm load

each channel, 99 steps of intensity control

Wave Form: Asymmetrical Bi-phasic Square Pulse

Voltage: 0-50V(Load: 500ohm)

Pulse Rate: Adjustable, 2-150Hz, 1 sec./step

Pulse Width: Adjustable, 50-400 microseconds, 10 us/step

On Time: Adjustable, 2-90 seconds, 1 sec./step

Off Time: Adjustable 0-90 seconds, 1 sec./step

Ramp Time: Adjustable, 1-8 seconds, 1 sec./step

Timer: Adjustable, 1-60 minutes and C(Continuous)

*IF

Pulse Amplitude: Adjustable, 0-60mA peak into 500 ohm load

each channel, 60 steps of intensity control.

Carrier Frequency: 4000Hz fixed (CH1)

Modulating Frequency: 4004-4160Hz, Adjustable (CH2)

Voltage: 0-30V(Load: 500ohm)

IF Frequency Modes:

Constant Mode: Constant stimulation, 4-160bps, Adjustable

Frequency Shift: Six modes, 1/1 abrupt shift, 6/6 abrupt shift,

6/6 ramped, 10/10 abrupt shift, 10/10 ramped & R(Repeat) bps

can be adjusted.

Auto Sweep: 4-45 bps, 80-145 bps & 4-SET bps

Sweep Time: 15 seconds

Frequency Shift Percent: Frequency shifts from 30% below the set

frequency to 60% above and then return to 30% below the set

frequency.

Output Configuration: Quad polar (4 electrodes)

Wave form: Symmetrical balanced Sine wave

Interference Pulse Freq: 4-160 bps, Adjustable, 4 bps/step

Pulse Duration: 125μs maximum

Timer: Adjustable, 1-30 minutes

IF mode to be used with AC adaptor only

TGA approved, ARTG 210592
