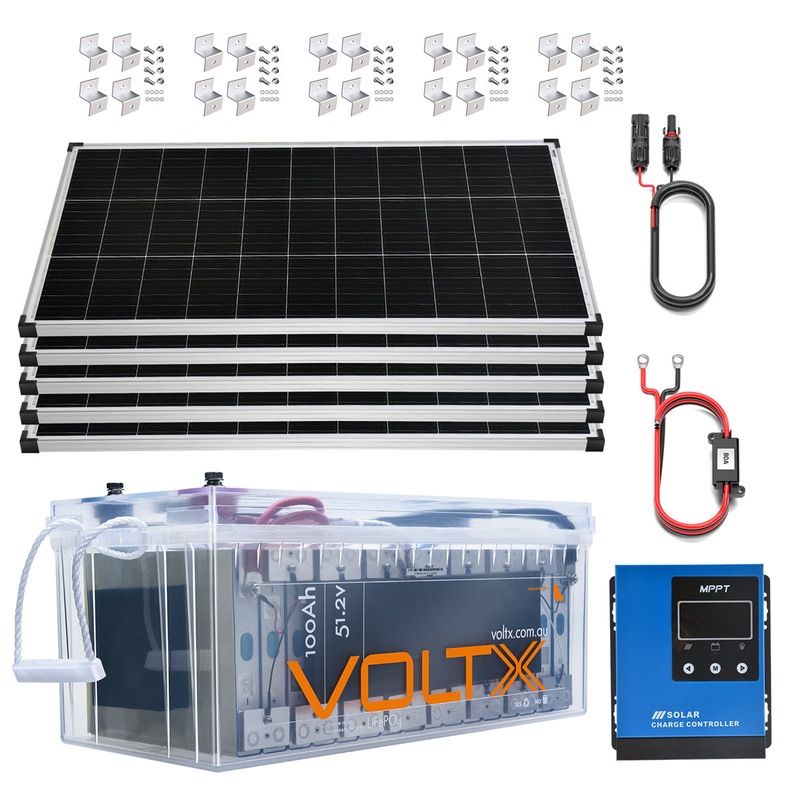

VoltX 48V 100Ah Lithium Battery 5X 160W Solar Panel 60A Controller Bundle LiFePO4

VoltX 48V 100Ah Lithium Battery 5X 160W Solar Panel 60A Controller Bundle LiFePO4

SOLD OUT

VoltX 48V 100Ah Lithium battery is built-in prismatic cells, with better performance and longer life, they're easy to store in a car or caravan on your next adventure.
  • Battery Management System monitors and optimizes each cell within the battery during normal operation, protecting it from over-charge, over-discharge, overheating and short-circuiting.
  • VoltX high efficiency 160W solar panel is perfect for permanent outdoor use to provide free electricity for charging batteries to power various applications, such as in a motorhome, caravan, camper, boat, or for solar lighting systems, off-grid, and back up solar power systems. Made from grade-A Monocrystalline, is born to provide rapid and reliable source of power when your electronic devices are running out of it.
  • Of course, solar charging always requires a charge controller to keep your battery safe. This device regulates the energy generated by the solar panels, which flows into the battery to prevent overcharging. The MPPT controller is made of the highest quality components and has modern features that allow for added convenience.
    48V 100Ah Lithium Battery
  • Rated Capacity: 100Ah
  • Usable Capacity: 100Ah
  • Rated Voltage: 51.2V
  • Rated Energy: 5.12KWh
  • Charge Voltage: 13.6~13.8V
  • Discharge Cut-off Voltage: 11.2V
  • Charge Method: CC/CV
  • Max.Charge Current: 50A
  • Max.Discharge Current: 100A
  • Working Temperature Range: Charge:0°C to 50°C
  • Discharge:-25°C to 65°C
  • Internal Resistance Fully Charged@ 25°C: ≤ 8mΩ
  • Operating Humidity: 60±25%R.H.
  • Thermal Management: Nature cooling
  • Total Weight(Kg): 38.0kg

  • 12V 160W Fixed Solar Panel
  • Maximum Power:160W
  • Max Power Voltage:18V
  • Open-Circuit Voltage: 21.6V
  • Short-Circuit Current: 9.35A
  • Cell Efficiency: 23.5%
  • Maximum System Voltage: 1000V
  • Temperature Range: -40°C to 85°C
  • Power Tolerance: 0-3%
  • Standard Test Conditions: AM=1.5,E=1000W/m², TC=25°C
  • Solar Cell: Mono Grade A
  • Net Weight: 8.5kg
  • IP Rating: IP65
  • Product Dimension:1220*680*30MM

  • 60A Controller
  • Input:
  • Rated charge current:60A
  • System Rated voltage: 12V/24V Auto Recognized
  • Maximum battery voltage: 8V-32V
  • Max PV Input Power: Input voltage: 100V (at the lowest temperature)
  • 92V (at a standard temperature of 25°C)
  • 12V battery: 780W
  • 24V battery: 1560W
  • Output:
  • Static loss: 50mA
  • HVD: Lead acid battery 16V
  • Light control voltage: 5V/10V/15V/20V
  • LCD temperature: -20°C~+70°C
  • Operating temperature: -20°C~+55°C
  • Storage temperature: -30°C~+80°C
  • Protection class: IP30
  • Grounded type: Positive grounded
  • Dimension: 261mm*191mm*84mm
  • Optional function: RJ45 PORT/RS485

  • Solar full charge time: 6.4h
    GTIN: 9355348041057
