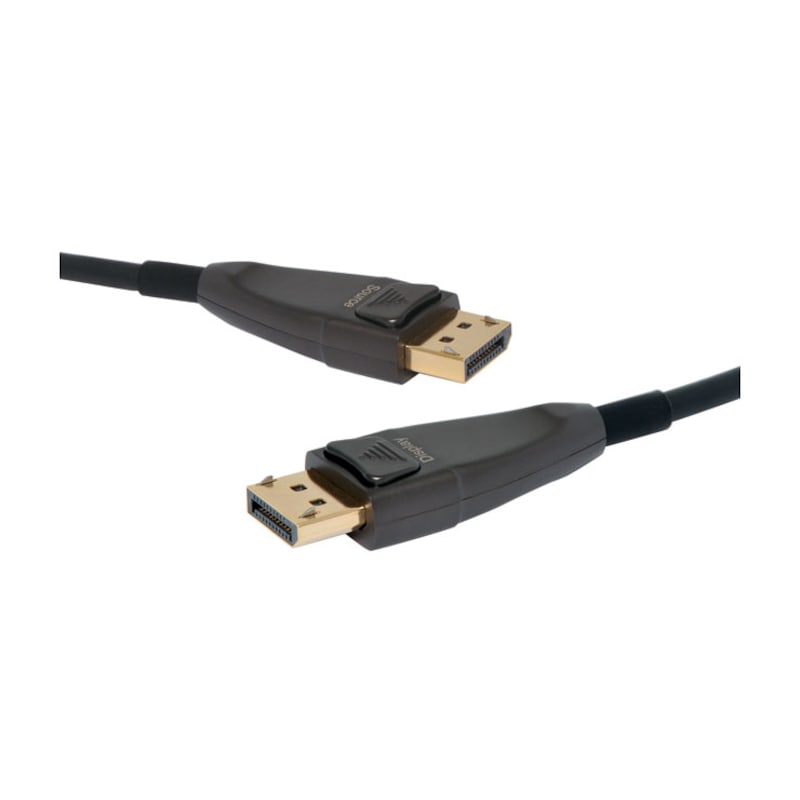

50m Optical DisplayPort Male To Male Lead

50m Optical DisplayPort Male To Male Lead

Hurry! 3 items left!

Price	$369.79
	Earn 3x points and collect 1107 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

This range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance. Used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. DisplayPort was designed to replace VGA, FPD-Link, and Digital Visual Interface (DVI). This range supports 8K resolution at 60Hz and due to its slimline plug it will suit a 25mm conduit.

Please Note: This cable is directional (Source - Display).

Features

Supports 8K @ 60Hz
32Gbps Bandwidth total
DisplayPort 1.4 Compliant
HDCP 2.2 Compliant
Hybrid fibre and copper cable
Slimline plug suits 25mm conduit

I/N: 17692
Barcode: 9321758245873
Shipping Weight: 1.88000Kg
Packaging Sizes
EACH: 1
CARTON: 5

Performance
Standards Compliance: DisplayPort 1.4/HBR3, HDCP 1.4/2.2
Maximum Pixel Clock Frequency: 810MHz
Maximum Video Bit Rate: Supports up to 8.1Gbps per lane, 32.4Gbps total
Maximum Colour Depth: 48bits
Maximum Supported Resolutions: 8K @ 60Hz
Connections
DisplayPort Input/Output: 20 Pin DisplayPort
Power: No external power supply is required
AUX Channel Support
AUX Channel Communications: Supports bi-directional communications for EDID, HDCP, Link Training etc
HDCP Support: HDCP 1.4 and HDCP 2.2
Optical
Optical Technology: 4 x discreet optical channels, 10GHz, 850nm
Optical Transmitter: 4 x 850nm multi-mode VCSELs
Optical Receiver: 4 x GaAs PIN photo diodes
Cable
Fiber Cable Jacket: Hybrid cable 4 x fiber and 8 x copper wire
Cable Jacket: PVC, Black
Cable Length: 50m
Mechanical - Cable
Maximum Tensile Load: 300N
Minimum Bend Radius: 48mm
Cable Diameter: 4.8mm (outside)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to +85°C
Operating/Storage Humidity: 5% to 80% (non condensing)
Power Requirements
Power Source: Powered from DisplayPort source device
Power Consumption: <0.5w each="" end="" li="">
