[B760M H DDR4] Intel LGA 1700 m-ATX Motherboard, M.2, USB 3.2, Type-C

[B760M H DDR4] Intel LGA 1700 m-ATX Motherboard, M.2, USB 3.2, Type-C

Limited Stock!

Price	$184.04
	Collect 184 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$14.95 Australia-wide (per item)
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Gigabyte B760M H DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 2x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x Type-C(NEED UPDATE

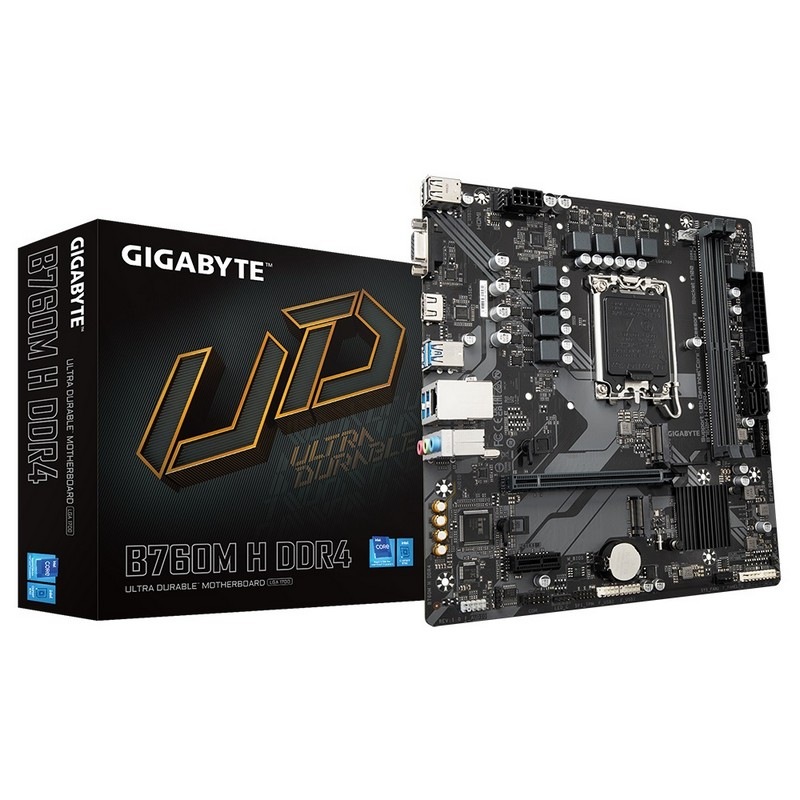

Gigabyte B760M H DDR4(rev. 1.0)

Features:

Intel® Socket LGA 1700?Support 13th and 12th Gen Series Processors
Unparalleled Performance?Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR4?2*DIMMs XMP Memory Module Support
Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch?PCIe 4.0x16 Slot with Quick Release Design
Fast Networks?GbE LAN
Extended Connectivity?HDMI, D-Sub
Smart Fan 6? Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Specifications:

CPU :LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset :Intel® B760 Express Chipset
Memory :Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics :Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)
Audio :Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN :Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots :CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface :CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB :Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports availablethrough the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available throughthe internal USB headers)
Internal I/O Connectors :1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors :2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller :iTE® I/O Controller Chip
H/W Monitoring :Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS :1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features :Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Bundled Software :Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System :Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor :Micro ATX Form Factor; 23.0cm x 21.5cm

SKU: WSC-770014089147
