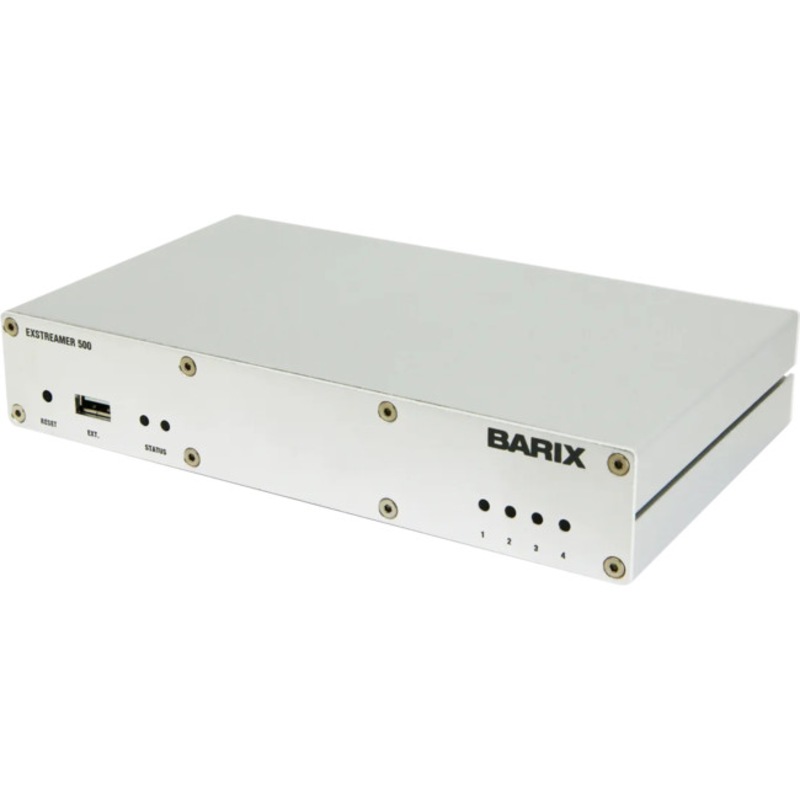

BARIX BAR20109096 Exstreamer 500

BARIX BAR20109096 Exstreamer 500

Hurry! 1 items left!

Price	$1952
	Collect 1952 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Barix Exstreamer 500 BAR20109096 Barix

Professional Multiprotocol IP Audio de-/encoder with I/O,balanced audio.

Support of Internet Radio and VoIP (SIP, RTP) codecs and protocols make the products the ideal choice for broadcast, professional and VoIP applications.

Applications

Live IP Audio Encoder for Streaming Applications
Generic, bidirectional full-duplex VoIP module forPaging and Intercom Applications
Paging and Audio Distribution with Amplifier control and monitoring
Shoutcast/Icecast Source Encoder
Confidence Monitoring and Vox Switch for Broadcast Applications
Commercial Audio Streaming Applications
Multiroom IP Audio System Receiver
Low latency IP Audio Encoder for multichannel applications
Background Music and Music-on-Hold encoder for VoIP Applications
Source Encoder for IP Audio Distribution Applications
Digital Annunciator, Message Player, Message Repeater
SIP and IP Paging Zone Device Features
MP3, G.711, PCM Encoding
MP3, G.711, PCM, AACplus*,Ogg Vorbis*, Decoding
Shoutcast/Icecast Source capability
Audio Level Supervision with SNMP Trap generation
IP Streaming via TCP, UDP, RTP, Multicast
Balanced Line Level Input (Stereo)
Balanced Line Level Output (Stereo)
Relay Output (4)
Contact Closure Input (4)
RS-232 / RS-485 Serial Port
USB Flash Memory Interface
Supply Voltage 24...48 VDC

Specifications

Electrical	24 to 48 VDC ± 20% Power requirement: 8 Watt max. 2 pin screw terminal connector
Ethernet	10/100Mbps auto, RJ-45 connetor with integrated Link & Activity LEDs Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable
RS-485	4 pin screw terminal connector 300..230‘400 Baud asynchronous, 7/8 bit
Analog Inputs & Outputs (stereo)	DB9 female socket
Analog Inputs	Differential input, 18kOhm input impedance Clipping level 15dBu, 12.3 Vpp Frequency response (-3dB) 20..20‘000 Hz** Signal to Noise Ratio 87 dB, THD 0.01% Stereo crosstalk -88 dB Input level software controllable (-3.. +19.5dB)
Analog Outputs	Differential output, 40..60 Ohm output impedance Output level software controllable Full scale output voltage: 15dBu, 12.3 Vpp Frequency response (-3dB) 20..20‘000 Hz** Signal to Noise Ratio 92dB, THD 0.03% Stereo crosstalk -66 dB

Formats

Format	Encode	Decode
PCM	Y	Y
G.711	Y	Y
Ogg Vorbis*	-	Y
AAC+*	-	Y

MP3	VBR, CBR* VBR, CBR*

Discrete I/O	Two 6 pin screw terminal connectors 4 contact closure sensing inputs 4 relay contacts, 24V 0.5A, normally open
Mechanical	Aluminum case, 620g, rack mountable using accessory bracket
Dimensions (W x H x D)	216x38x125mm (8.5x1.5x4.92 inch)
MTBF	Calculation 410 000h (according to MIL217F at 25°C)

* Hardware revision 2 only

** depends on used codec, best results @48kHz PCM

Weight: 1.1
