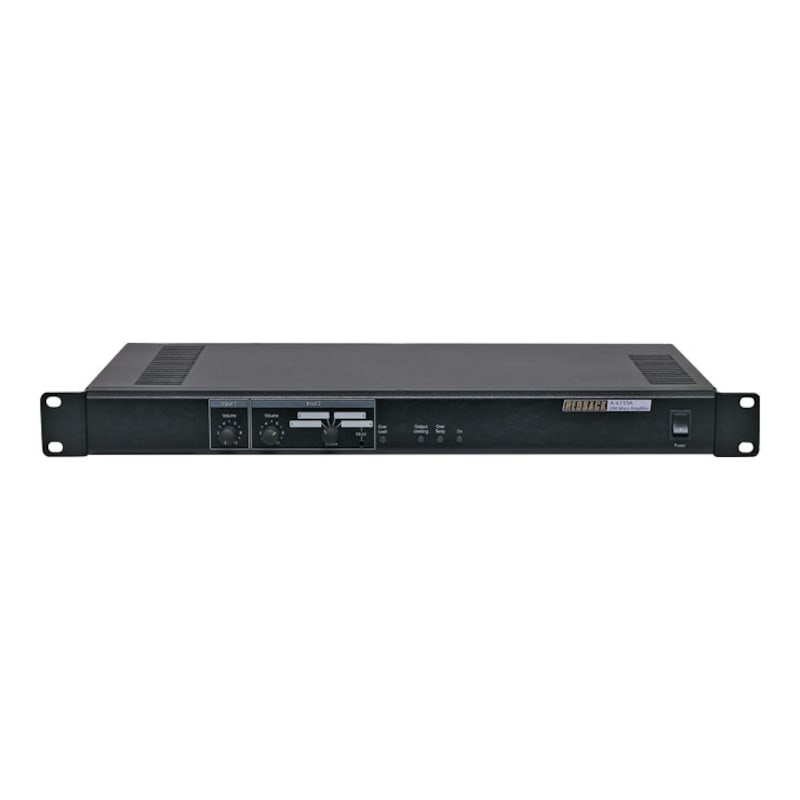

Compact 1RU Public Address (PA) Mixer 100V Amplifier 30W

Compact 1RU Public Address (PA) Mixer 100V Amplifier 30W

Hurry! 3 items left!

Price	$702.99
	Collect 702 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

These compact 1RU rack mount amplifiers are suitable for both stand alone PA system use, or as zone amplifiers in larger systems requiring local inputs. All models operate on 240V ac or 24V dc for battery backup operation.

All models include a choice of six source options on 2 inputs. Input one consists of a 3-pin XLR which can be set for either balanced mic level (3mV) or balanced line level (2V), adjusted via a rear mounted trimpot. A dual RCA is also provided on input one with adjustable sensitivity of either 100mV or 1V. Input two consists of three sets of dual RCA sockets on the rear panel and a 3.5mm jack on the front panel. Auxiliary source inputs are selected via the front panel switch. Input one can be DIP switch selectable to VOX mute input two. Phantom power is also provided on input one XLR. Volume level controls are provided on the front panel for inputs one and two.

The circuit includes protection features in case of output over voltage, over current and over temperature. All are self resetting once the fault condition is removed. Visual indication via front panel LEDs display amplifier status at all times.

Features

Compact 1RU 19” rack mount design
Balanced mic or line input
100V line output
VOX muting
Phantom power
Four auxiliary inputs
Overload limiting
Over voltage limiting
On demand fan cooling
Over temperature shut down protection
Dual input connectors
Variable input sensitivities
240V ac / 24V dc operation

I/N: 17676
Barcode: 9321758242254
Shipping Weight: 6.50000Kg
Packaging Sizes
EACH: 1

Distortion: < 0.5%, @ 1kHz
Frequency response: 50Hz - 15kHz, -3dB
Output line: 100V
Mic sensitivity: XLR balanced 2mV to 2V
Line sensitivity: RCA 100mV/1V, 3.5 TRS 600mV
Signal to noise ratio: > 80 dB
Input 1: 3 pin XLR balanced / dual RCA
Input 2: Dual RCA x 3 / 3.5mm TRS jack x 1
24V dc power: Pluggable screw terminals
240V ac power: IEC power connector
Speaker output: Pluggable screw terminals (100V line)
Current Draw: 160mA Standby, 2.5A Full @ 24V dc
Protection: 1A ac & 3A dc breaker
Dimensions: ≈ 483W x 210D x 44H
A 4235 Weight: ≈ 4.5kg

SKU: 49.1131.B4235B_Bmuspojdt
