Current Sensing Switch Normally Current Sensing Switch Adjustable Ac Current Isolation Monitoring S

Current Sensing Switch Normally Current Sensing Switch Adjustable Ac Current Isolation Monitoring S

SOLD OUT

1. Self-powered no external power supply required.
2. Action current 0.2-30A AC adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the switch.
4. High-power MOS tube contactless electronic switch.
5. The switch has on the number of opening and closing and the reaction speed reaches the level.

Straight-through structure design isolation withstand voltage up to 2000V.
Hysteresis is less than 1% and can be used under strong magnetic conditions.
The outer casing is made of self-extinguishing material ABS.

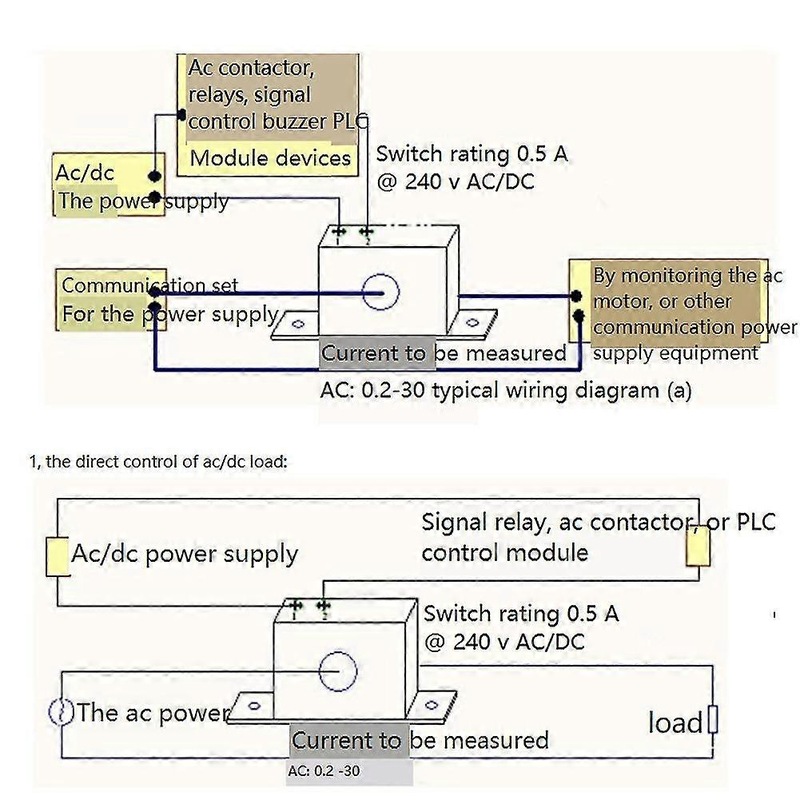

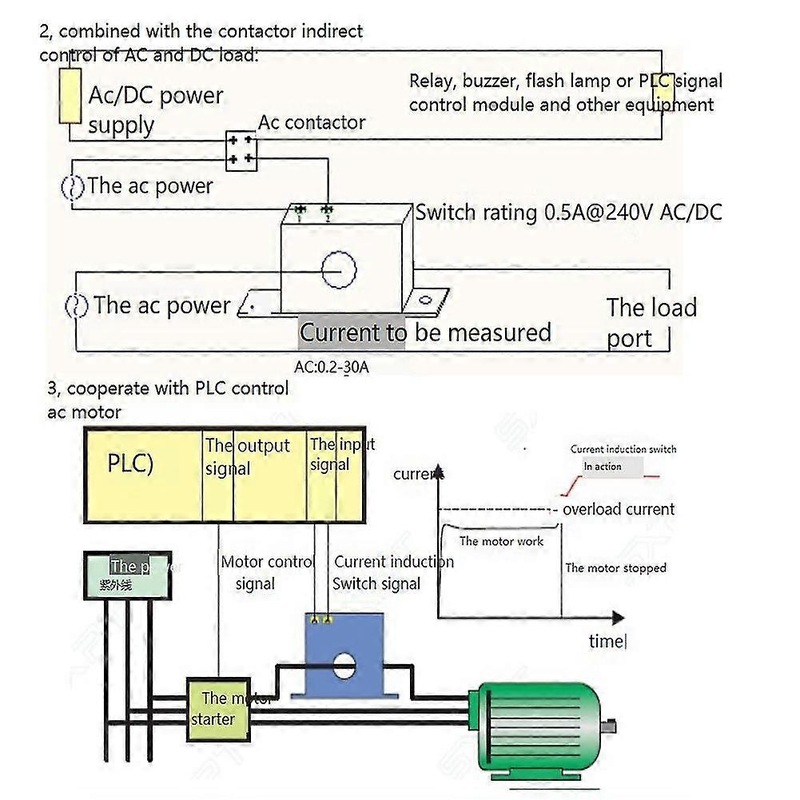

Suitable for AC current measurement and monitoring AC motor overload protection electronic switch of automatic control system and so on.

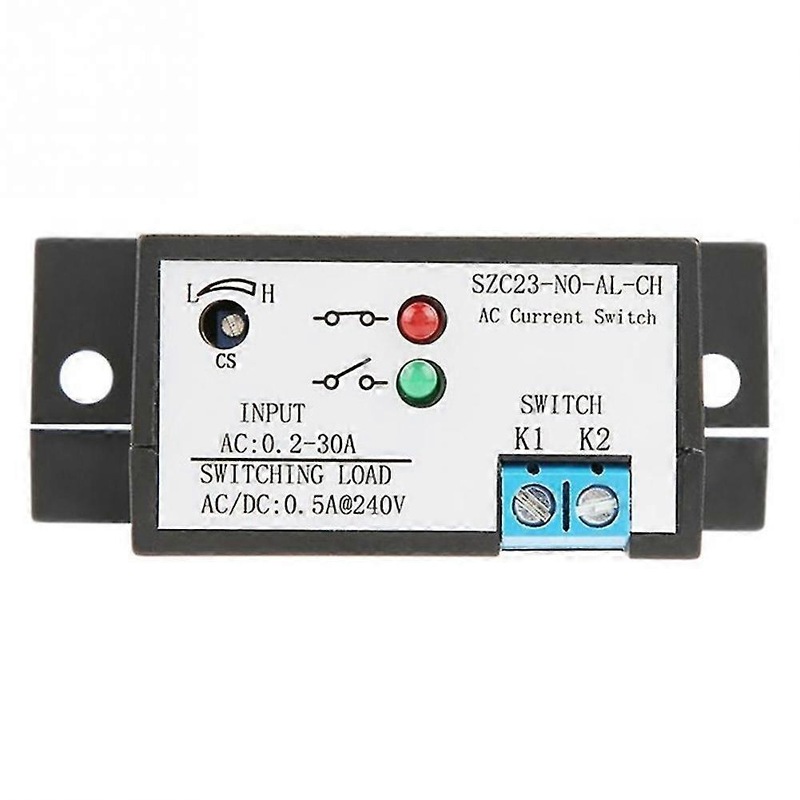

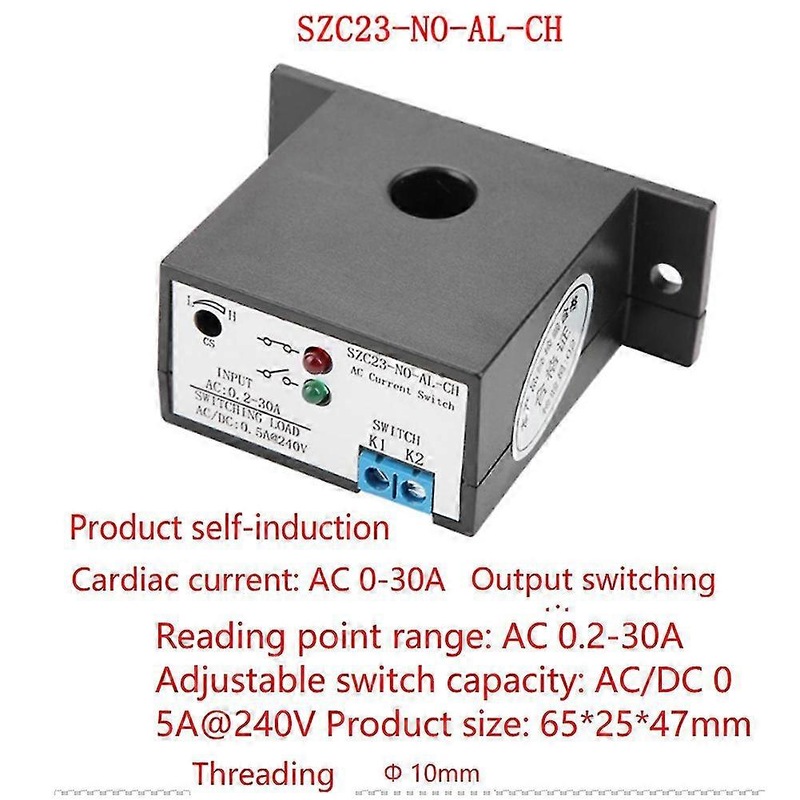

Model: SZC23-NO-AL-
Power supply: Not required
Rated load: less than 0.5A 240V AC/DC
Input current: 0.2-30A AC
Switch on minimum: 0.50.2A
Maximum overload: 100%
Leakage current: less than 0.1A
Accuracy: 1%
Hysteresis: less than 1%
Response time: less than 200ms
Repeatability: 100%
Working temperature: -20-60Celsius
Waterproof: IP30
Hole diameter: 10mm / 0.4in
Colour:black
Material:Metal + Plastic

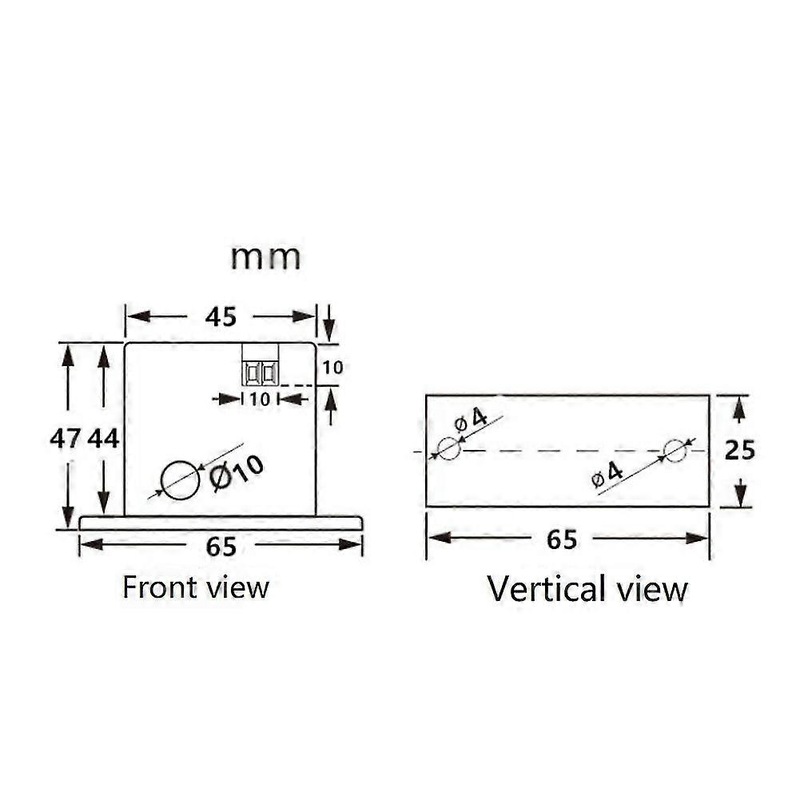

Size:65 x 25 x 47mm

Package Contents:
1 x Current Sensing Switch

Only the above package content other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
GTIN: 542610175582
