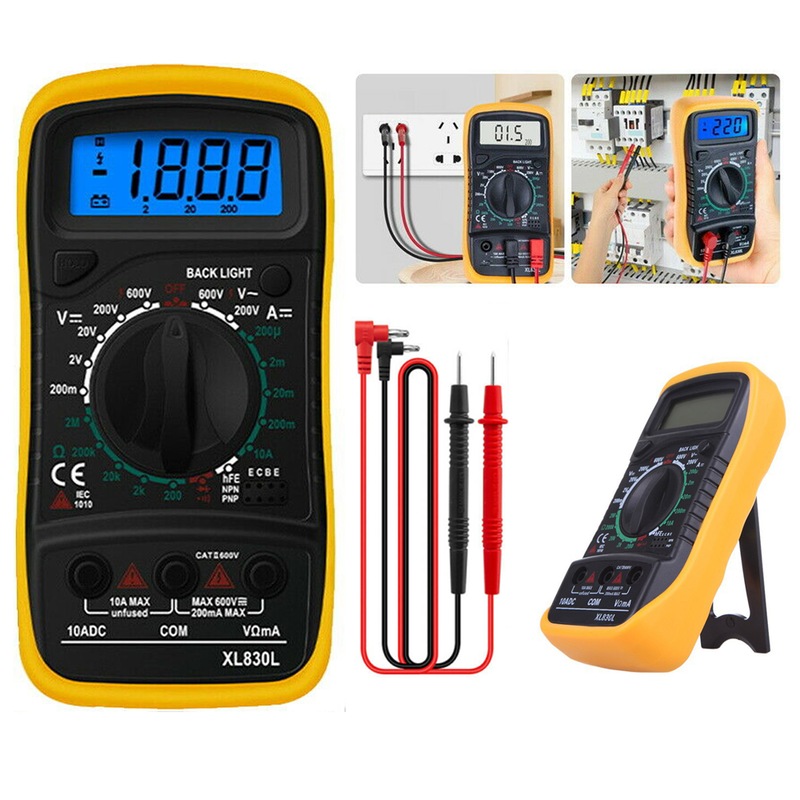

Electrical LCD Digital Multimeter Ohmmeter Multi OHM Tester AC DC Voltmeter

Electrical LCD Digital Multimeter Ohmmeter Multi OHM Tester AC DC Voltmeter

SOLD OUT

     Feature

     - High Quality and Brand New


     - LCD Digital Multimeter Large Display(15mm) with Back ground Light


    - The meter is a handheld 3-1/2 digital mutimeter for measuring DC       and AC Voltage, DC Current, Resistance, Diode, Transistor test


    - Easy to operate and the readings indicated directly on the screen

    - Overload Protection: F 200 mA / 250 V fuse. 10 A range not fused


    - Low battery voltage indication


    - It can be use to overhaul all kinds of circuit boards

    - Ideal teaching instrument for use in fields, such as laboratory,     workshop, and home application


   - DC Voltage: 2V / 20V / 200V / 600V

   - AC Voltage: 200V / 600V

   - DC Current: 20µA / 200µ A / 2mA / 20mA / 200mA / 10A


   - Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ


   - Size: Approx. 143 mm × 72 mm × 34.7 mm


   - Power: 9 V Battery NEDA 1640

   - Over-range Indication: "1" on the display

   - Polarity Indication: Negative symbol

   - Operating Environment: 0 °C to 40 °C

   - Storage Temperature: -10 °C to 50 °C


   Note:

   - Remove the pen and cut off the power before replacing battery and fuse

   - Overload protection 600 V DC or RMS AC for all other ranges. Frequency range 40 Hz to 400 Hz

  - Response: Average responding calibrated in RMS of a Sine wave

  - Do not change the inner circuit to avoid damaging the ammeter

  - Do not connect it to the voltage over 1000VDC or 750VAC

  - Do not use the ammeter if the back cover is wrong

   Package
  • - 1 x Digital Multimeter
  • - 1 x Set of test leads (black+red)
  • - 1 x Set of test leads with crocodile clips (black+red)
  • - 1 x Manual
