Features:
• HDBaseT-Lite Technology up to 230ft/70m distance
• Simple plug-and-play for easy connection - no set up/drivers/software required
• Supports High Definition resolutions up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• Supports Bi-directional wideband IR control from source to display or from display to source
• Supports Bi-directional 24V PoC
• Compact design for an easy and flexible installation
Technical
HDMI Compliance   HDMI 2.0a
HDCP Compliance    HDCP 2.2
Video Bandwidth   10.2 Gbps
Video Resolutions   up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space   RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth   10-bit, 12-bit, 16-bit
Audio Formats   PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection   Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs  Â

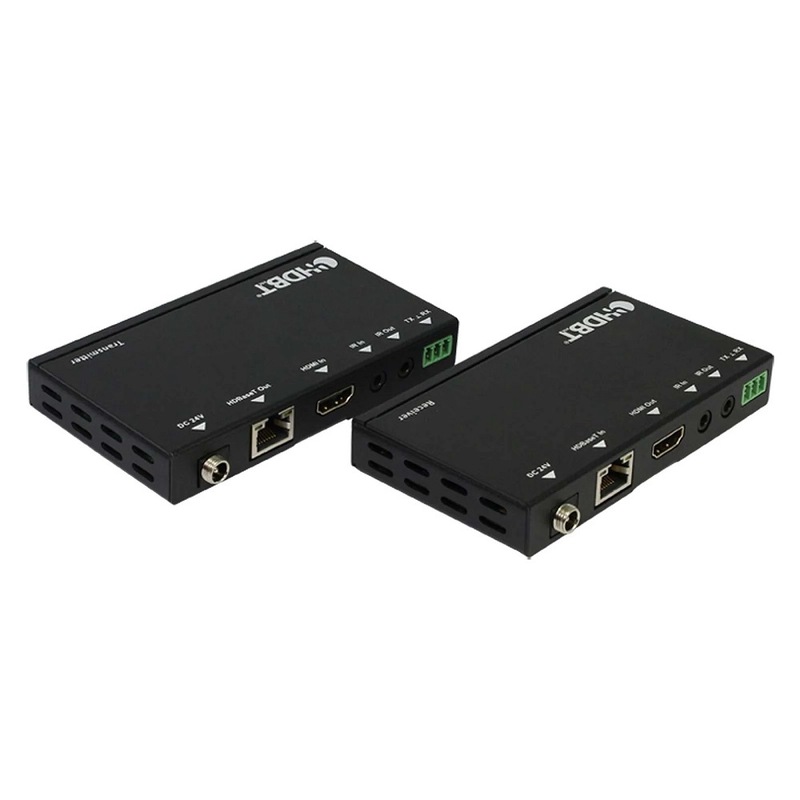

TX:
 1x HDMI Type A [19-pin female]
 1x 3.5mm Stereo Mini-jack [Infrared Receiver]
 1x 3-pin Phoenix connector [RS-232]
RX:Â
 1x RJ45 [HDMI & Propriety Data]
 1x 3.5mm Stereo Mini-jack [Infrared Receiver]
Outputs  Â
TX:
 1x RJ45 [HDMI & Propriety Data]
 1x 3.5mm Stereo Mini-jack [Infrared Emitter]
RX:Â
 1x HDMI Type A [19-pin female]
 1x 3.5mm Stereo Mini-jack [Infrared Emitter]
 1x 3-pin Phoenix connector [RS-232]
Mechanical
Housing    Metal Enclosure
Dimensions   TX/RX: 65mm [W] x 115mm [D] x 17mm [H]
Net Weight   TX/RX: 200g
Power Supply   Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) Â Â Â 12W with PoC
Operation Temperature   32 - 104°F / 0 - 40°C
Storage temperature   -4 - 140°F / -20 - 60°C
Relative Humidity   20 - 90% RH (no condensation)
12 Month Warranty
