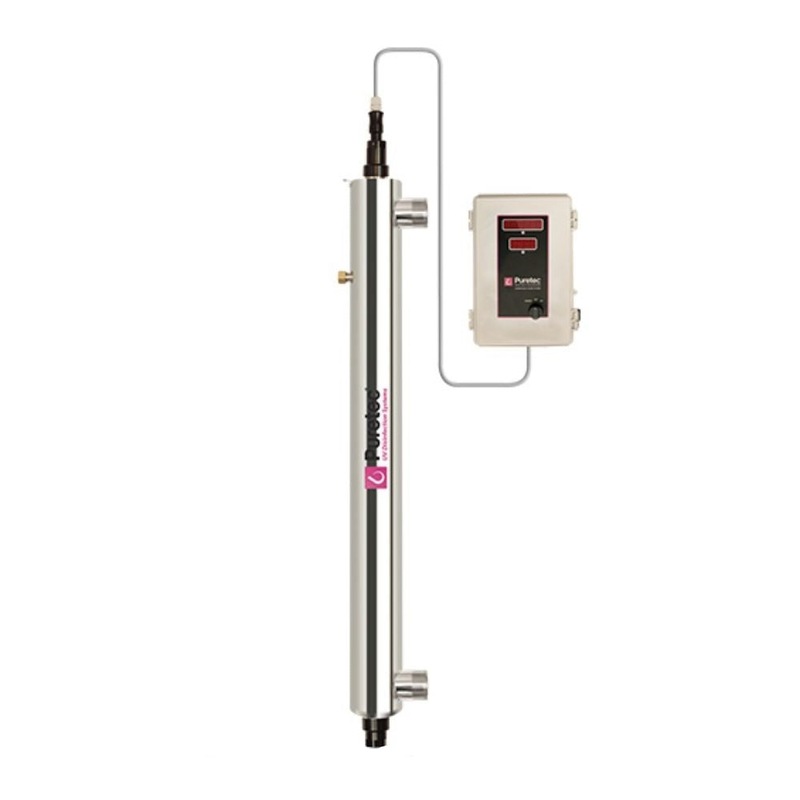

Puretec RL-37k UV Lamp 12,000 hour life

Puretec RI Series ultraviolet disinfection systems are ideal for microbiological protection in your industrial application. Constructed with highly polished 316L stainless steel reactors and industrial grade enclosures, it uses proven low pressure amalgam (LP-AM) lamp technology offering stable output in both hot and cold water applications.

Covering a wide variety of applications in both regulated and unregulated markets, RI Series offers environmentally friendly disinfection at lower capital and operating costs than traditional disinfection solutions.

FEATURES & BENEFITS

Colour user interface with full diagnostics and warnings.

Future-proof expandability port for future upgrades and options.

Axial flow, 316L stainless steel reactor, polished reactors with integral sensor port to allow for sensor upgradeability in the future.

Universal input, constant current electronic controller in a splash-proof case.

12,000 hour lamp life.

SPECIFICATIONS

Ordering Code

RI-37K

Flow Rate @ 16 mJ/cm2

632 Lpm

Flow Rate @ 30 mJ/cm2

322 Lpm

Flow Rate @ 40 mJ/cm²

252 Lpm

Connection

2 MNPT

Replacement Lamp

RL37K

Replacement Sleeve

RQS37K

Operating Temperature

2 - 60°C (36 - 148°F)

Power Supply

230V / 50-60Hz

Warranty

2 years^

Accessories

RI-SEN3 - UV sensor module, suits RI-37K

RI-TMV - Water temperature management valve, ½ BSP

RI-MC37K - UV remote monitor cable, 10m, suits RI-37K, RI-60K
