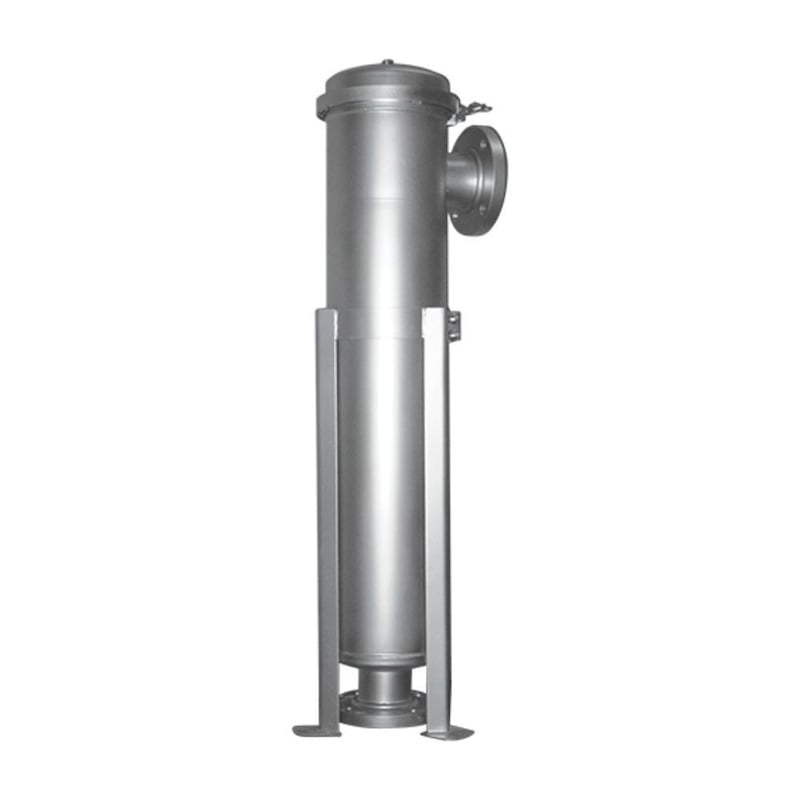

Puretec SSBH-2-75F-316 Bag Filter Housing 316 S/Steel 3" Flanged 1 Year Warranty

The Puretec SSBH-2-75F-316 stainless steel filter housings offers a variety of solution for your large scale, heavy-duty filtration needs. Simple to install and maintain, these housings are ideal for schools, restaurants, farms, institutions and industrial use.

Unlike cartridge filters or strainers, all the contaminants are captured within the bag and do not pass into a process stream when a bag is replaced.

An economical bag filter can be used to improve the life of more expensive down stream filters and is often placed first in a filter train. Considerable savings can be made for a modest investment.

FEATURES & BENEFITS

Low cost, high volume nominal filtration.

316 stainless steel non-coded housing as standard polished internally and externally.

Quick release clamp for simple bag removal from the top of the housing.

Ideal for the filtration of water, effluent water, recirculation water.

Pre UV or RO equipment and cooling tower applications.

Can withstand temperatures up to a maximum of 100°C.

SPECIFICATIONS

Ordering Code

SSBH-2-75F-316

Material of Construction

316 Stainless Steel

Min/Max Flow Rate

0 - 500 Lpm

Bag Size

Size 2

Connection

3" Flanged

Maximum Pressure

600 kPa

Operating Temperature

4 - 99°C (40 - 210°F)

Warranty

1 year
