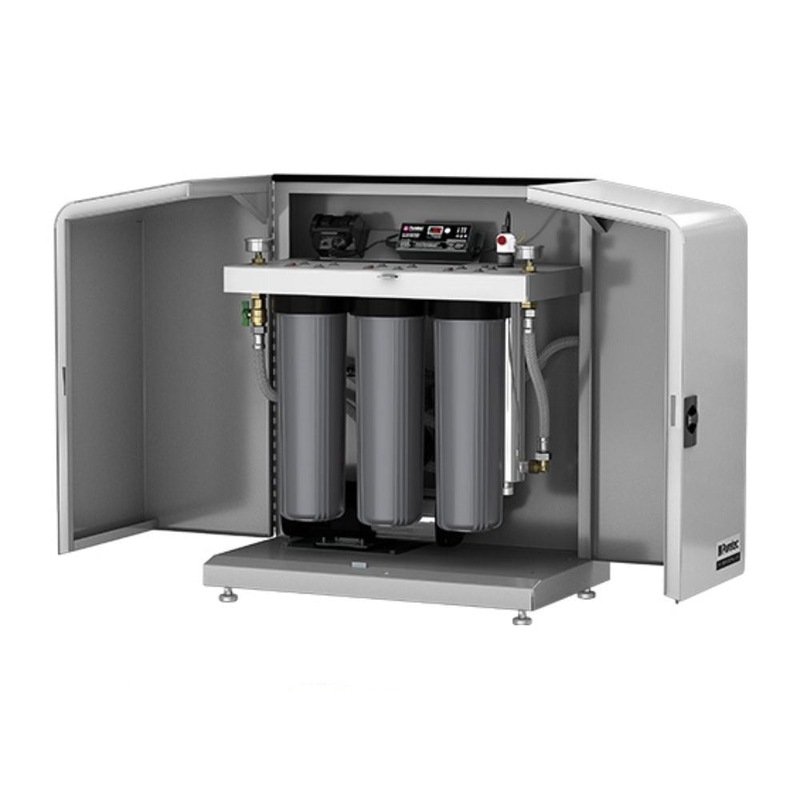

Puretec Triple Filter & UV System With Grundfos Pump & Mains/Rain Controller

FEATURES & BENEFITS

Designed specifically for both mainswater and rainwater supply. The Puretec HybridPlus is a complete plug & play package with pump* filters & UV in one unit that is weatherproof, rodent-proof, tamper proof and reduces pump noise.

Bacteria protection - Kills 99.9% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire ultraviolet technology, natural process that completely eco-friendly and chemical-free.

Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.

Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.

Premium pump, pressure controller and optional mains/rains changeover switch to ensure adequate pressure and seamless back up from the mains/municipal water supply.

Neatly concealed ventilation to allow airflow and heat dissipation.

Suitable for other water supplies - depending on water quality (refer to Puretec Customer Care).

SPECIFICATIONS

Ordering Code

HYBRID-P12

Replacement Cartridge(s)

Stage 1 filtration

PL05MP2

Stage 2 filtration

CB05MP2

Stage 3 filtration

PX01MP2

UV Lamp

RL6

Quartz Sleeve

RQS6

Grundfos pump model

CMB-SP 5-47

Rated power

0.9 kW

Pressure controller

PM2

Mains to rains controller

standard

Power Supply

220-240 VAC / 50 Hz

Maximum current consumption

3.1-2.8 A

Water temperature range

0-52°C (protect from freezing)

Self-priming

4 m

UV dosage @40mJ/cm2

54 Lpm

UV dosage @30mJ/cm2

70 Lpm

UV dosage @16mJ/cm2

130 Lpm

Pump flow rate

86 Lpm

Connection

1 BSP [25mm]

Warranty

3 years
