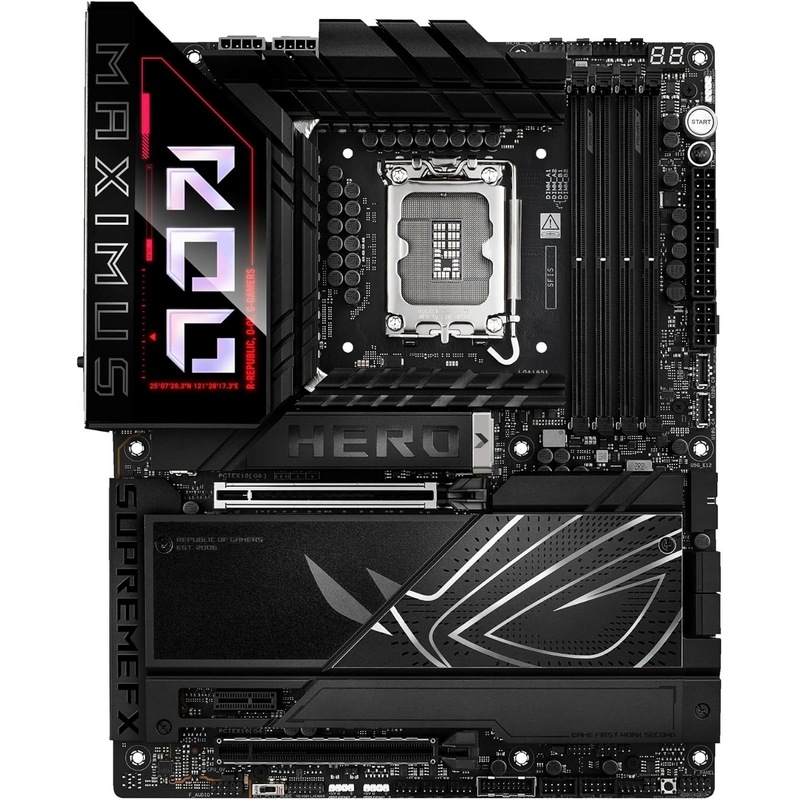

[ROG MAXIMUS Z890 HERO] Motherboard, for Intel CPU, DDR5, LGA1851, ATX MB

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS. * Availability of ASUS AI Advisor may vary by region.

• Teamed Power Solution AI Networking II AI Cooling II One-click fan tuning Overclocking Effortless performance boost DDR5 Max. 192GB, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III Extensive Gen 5 x3 onboard M.2 slots, and x1 PCIe 5.0 x16 slot WiFi 7 EZ PC DIY Polymo Lighting II
• Thunderbolt™ 4

• Model :ROG MAXIMUS Z890 HERO
• News & Updates :2024/10/24: A new BIOS has been released addressing various bugs, including no d
  isplay from the graphics card when installing Windows 11 24H2. It is recommended
  to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
  Please visit Asus website to check and download the latest updates.
• CPU :Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer toAsus official site/support/download-center/for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® Z890 Chipset
• Memory :4 x DIMM slots, max. 192GB, DDR5
  Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  Supports Intel® Extreme Memory Profile (XMP) memory module
  Supports DIMM Flex
  NitroPath DRAM Technology
  DIMM FIT
  ASUS Enhanced Memory Profile III (AEMP III)
  * Supported memory types, data rate (speed), and number of DRAM modules vary dep
  ending on the CPU and memory configuration, for more information please refer to
  CPU/Memory Support list under the Support tab of product information site or visit Asus official site/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics :1 x HDMI™ port**
  2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates
  ** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
  *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, ma
  ximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.
  ******While installing the operating system, please ensure that your monitor is
  connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Expansion Slots :Intel® Core™ Ultra Processors (Series 2)*
  1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
  Intel® Z890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0 x1 slot
  * Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/).
  ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
  - To ensure compatibility of the device installed, please refer to https:// Asus official site/support/ for the list of supported peripherals.
• Storage :Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors (Series 2) *
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  Intel® Z890 Chipset
  M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
  * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
  ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
• Ethernet :1 x Intel® 2.5Gb Ethernet
  1 x Realtek 5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 11 ports)
  2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
  5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
  4 x USB 5Gbps ports (4 x Type-A)
  Front USB (Total 10 ports)
  1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
  1 x USB 10Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  * USB Type-C® power delivery output: max. 5V/3A
  ** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
• Audio :ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
  - Impedance sense for front and rear headphone outputs
  - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  - Supports up to 32-Bit/384 kHz playback on front panel"
  Audio Features
  - SupremeFX Shielding Technology
  - ESS® ES9219 QUAD DAC
  - Gold-plated audio jacks
  - Rear optical S/PDIF out port
  - Premium audio capacitors
  * The LINE OUT port on the rear panel does not support spatial audio. If you wis
  h to use spatial audio, make sure to connect your audio output device to the aud
  io jack on the front panel of your chassis or use a USB interface audio device.

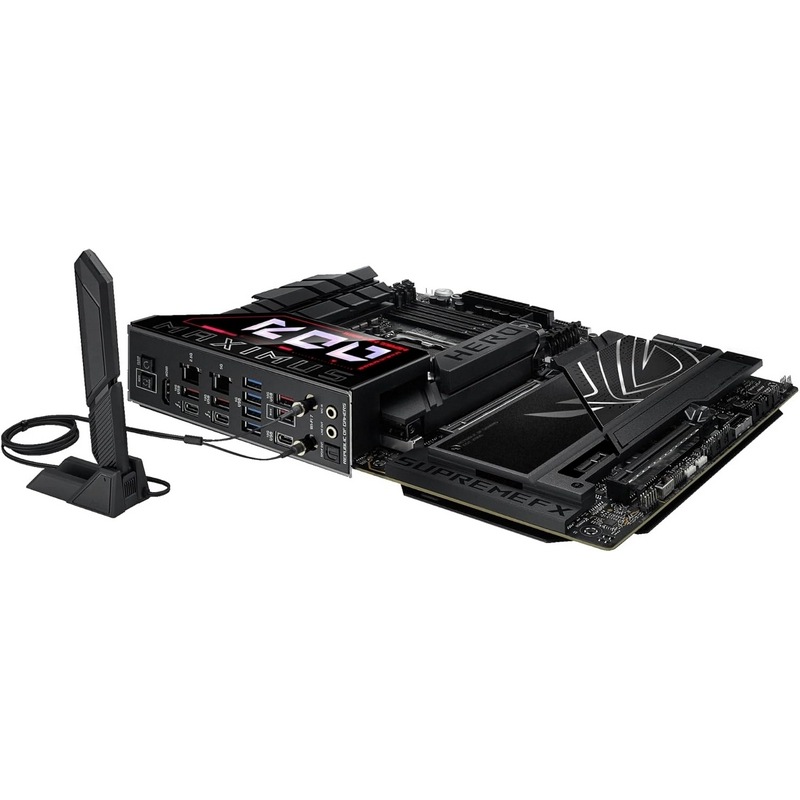

• Back Panel I/O Ports :2 x Thunderbolt™ 4 USB Type-C® ports
  5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
  4 x USB 5Gbps ports (4 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  1 x Realtek 5Gb Ethernet port
  2 x Gold-plated audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
• Internal I/O Connectors :Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  1 x W_PUMP+ headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  1 x 8-pin PCIe Power connector
  Storage Related
  6 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  1 x SlimSAS connector
  USB
  1 x USB 20Gbps connector (supports USB Type-C® )
  1 x USB 10Gps connector (supports USB Type-C® )
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Alteration PCIe mode switch
  1 x FlexKey button
  1 x Front Panel Audio header (F_AUDIO)
  1 x ReTry button
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4®) header*
  * The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
• Special Features :Extreme OC Kit
  - FlexKey button
  - ReTry button
  - Start button
  Extreme Engine Digi+
  - 10K Black metallic capacitors
  - MicroFine alloy choke
  ASUS Q-Design
  - M.2 Q-Latch
  - M.2 Q-Release
  - M.2 Q-Slide
  - Q-Release Slim (with PCIe SafeSlot)
  - Q-Antenna
  - Q-Code
  - Q-Connector
  - Q-Dashboard
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  - M.2 heatsink
  - Metal backplate
  - VRM heatsink design
  ASUS EZ DIY
  - Backplate
  - BIOS FlashBack™ button
  - Clear CMOS button
  - CPU Socket lever protector
  - ProCool II
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  Aura Sync
  - Addressable Gen 2 header(s)
  ROG M.2 PowerBoost
  Front Panel USB 20Gbps with Quick Charge 4+ Support
  - Support: up to 60W fast charging and USB Wattage Watcher*
  - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  - Compatible with PD3.0 and PPS
  * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
• Software Features :ROG Exclusive Software
  - ROG CPU-Z
  - Dolby Atmos
  - Polymo Lighting II
  - Internet Security (1-year full version)
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 Extreme (1 year full version)
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - GameFirst
  - Power Saving
  - Hwinfo
  ASUS AI Advisor
  ASUS DriverHub
  ASUS GlideX
  Thunderbolt™ Share
  USB Wattage Watcher
  TurboV Core
  Adobe Creative Cloud (Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  NPU Boost
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
  FlexKey
• BIOS :256 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME
• Accessories :Cables
  1 x ARGB RGB extension cable
  4 x SATA 6Gb/s cables
  Additional Cooling Kit
  1 x DDR5 fan holder
  1 x Thermal pad for M.2 22110
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Q-connector
  1 x M.2 Q-Latch package
  3 x M.2 Q-Slide packages
  1 x ROG stickers
  6 x M.2 rubber packages
  1 x ROG thank you card
  1 x ROG Bottle Opener
  Installation Media
  1 x USB drive with utilities and drivers
  Documentation
  1 x Quick start guide
• Operating System :Windows 11 (22H2 & later)
• Form Factor :ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
