Startech 1-Port Express Card RS232 Serial Adapter Card with 16950 UART
16C950 UART with baud rates up to 115.2Kbps

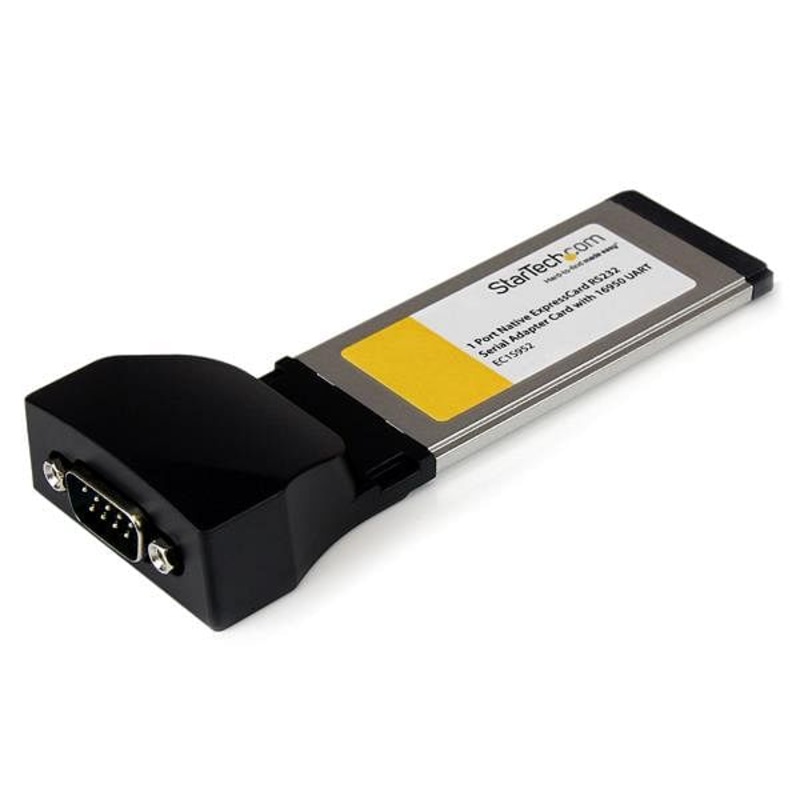

The EC1S952 1 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART lets you add an RS232 serial port to your laptop or ExpressCard-equipped desktop computer.
The serial ExpressCard is designed based on a single-chip architecture (as opposed to cards that use a "bridge chip"), providing native PCI Express communication for greater performance and reliability by reducing the CPU load by up to 48%, and lowering power consumption.
An included stabilizer bracket allows the EC1S952 to fit snugly in both 34mm and 54mm ExpressCard slots. Providing optimal communication with RS232 serial devices, this ExpressCard serial card supports baud rates of up to 115.2Kbps and features a 128-byte FIFO buffer, plus a high performance 16C950 UART.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Connector(s) | |
Connector Type(s) | ExpressCard (34mm) |
External Ports | DB-9 (9 pin, D-Sub) Male |
Environmental | |
Humidity | 5~85% RH |
Operating Temperature | -10?C to 80?C (14?F to 176?F) |
Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
Hardware | |
Bus Type | ExpressCard |
Card Type | 34mm ExpressCard |
Chipset ID | PLX/Oxford - OXPCIe952 |
Interface | Serial |
Port Style | Integrated on Card |
Ports | 1 |
Packaging Information | |
Shipping (Package) Weight | 0.2 kg [0.5 lb] |
Performance | |
FIFO | 128 Bytes |
Max Baud Rate | 115.2 Kbps |
Serial Protocol | RS-232 |
Physical Characteristics | |
Product Height | 20 mm [0.8 in] |
Product Length | 115 mm [4.5 in] |
Product Weight | 34 g [1.2 oz] |
Product Width | 45 mm [1.8 in] |
Software | |
OS Compatibility | Windows? CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Linux 2.4.x to 4.4.x LTS Versions only |
What's in the Box | |
Included in Package | 34 to 54mm slot spacer |
Driver CD | |
ExpressCard to Serial Adapter | |
Instruction Manual |
Specification | Value |
---|---|
MPN | EC1S952 |
Manufacturer Part Number | EC1S952 |
Product Condition | Brand New/Unused |
SKU | 210735 |
