Startech SATA to 2.5in or 3.5in IDE Hard Drive Adapter for Hard Drive Docks
SAT2IDEADP Support 40/44 pin IDE Hard Drives

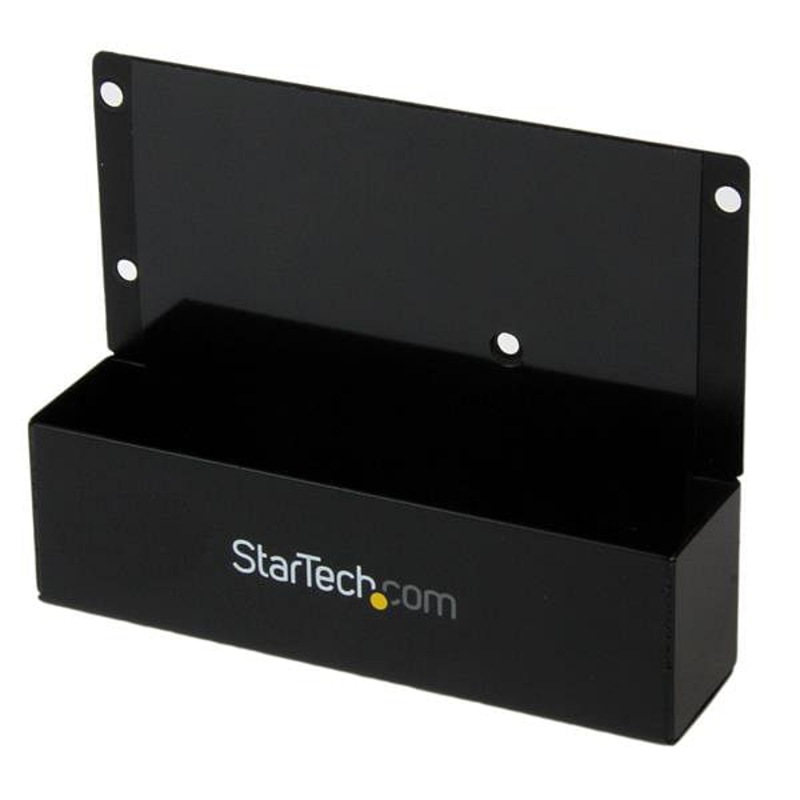

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators, including:
Backed by 2-year warranty and free, lifetime technical support.
Connector(s) | |
Connector Type(s) | SP4 (4 pin, Small Drive Power) Male |
Drive Connectors | IDE (40 Pin, EIDE/PATA) Female |
IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
LP4 (4 pin, Molex Large Drive Power) Female | |
Host Connectors | SATA (7 pin, Data) Plug |
SATA Power (15 pin) Plug | |
Environmental | |
Humidity | 8% ~ 90% RH |
Operating Temperature | 5?C to 80?C (41?F to 176?F) |
Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
Hardware | |
Chipset ID | Jmicron - JM20330 |
Compatible Drive Types | IDE (ATA) |
Drive Installation | Fixed |
Drive Size | 2.5in & 3.5in |
Fan(s) | No |
LBA support | 48-bit |
Number of Drives | 1 |
Packaging Information | |
Shipping (Package) Weight | 230 g [8.1 oz] |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 26 mm [1 in] |
Product Length | 101 mm [4 in] |
Product Weight | 104 g [3.7 oz] |
Product Width | 78 mm [3.1 in] |
Software | |
OS Compatibility | OS independent; No software or drivers required |
What's in the Box | |
Included in Package | 40-pin IDE cable |
40-pin to 44-pin IDE cable with power | |
Instruction Manual | |
Package of mounting screws | |
SATA to IDE adapter | |
SP4 to LP4 Power cable |
Specification | Value |
---|---|
MPN | SAT2IDEADP |
Manufacturer Part Number | SAT2IDEADP |
Product Condition | Brand New/Unused |
SKU | 211008 |
