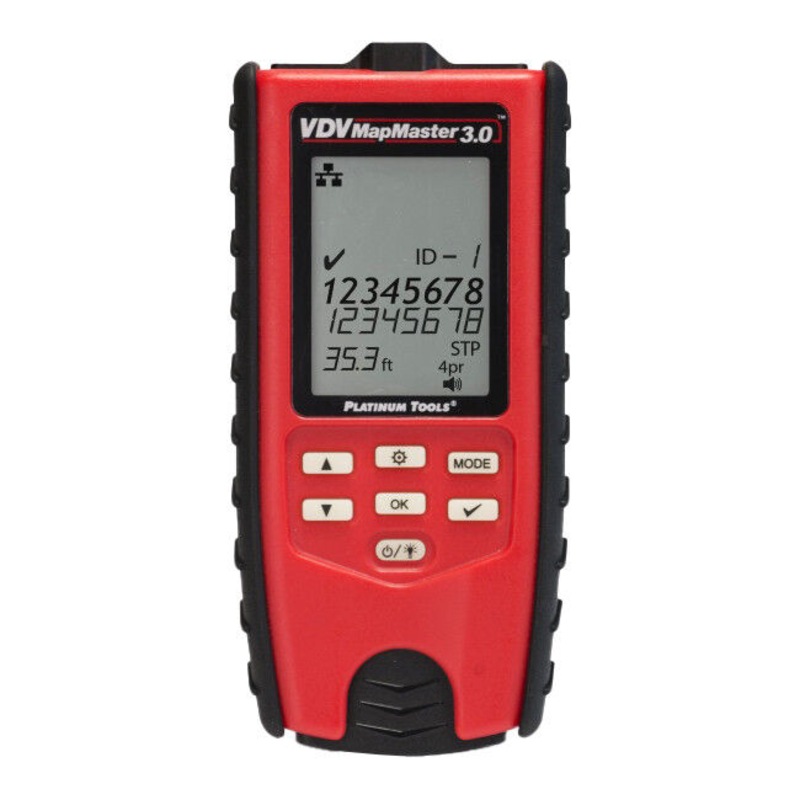

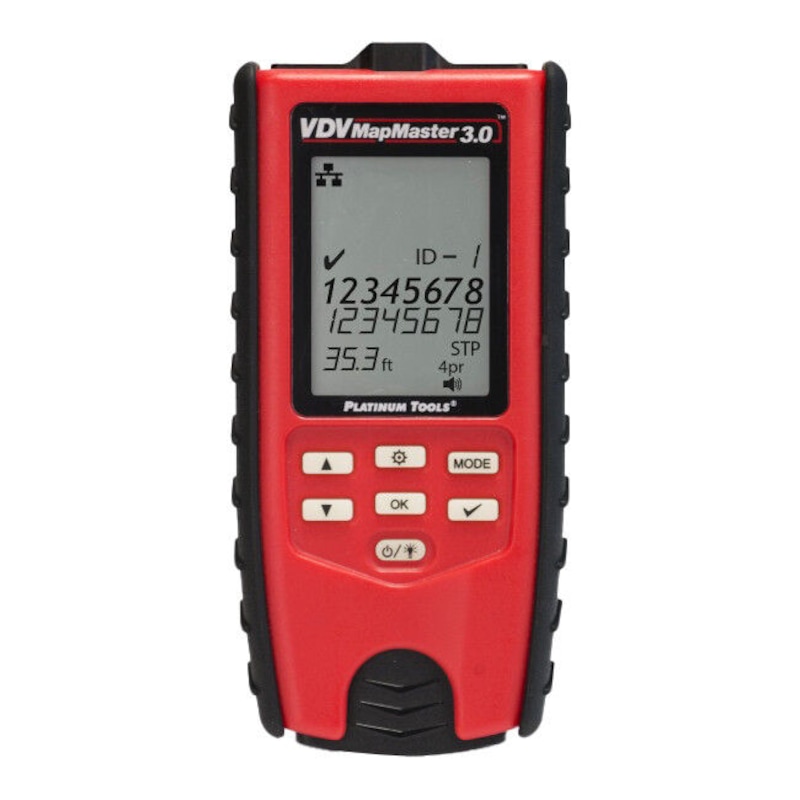

VDV MAPMASTER 3.0 CABLE TESTER FIELD KIT

VDV MAPMASTER 3.0 CABLE TESTER FIELD KIT

Hurry! 1 items left!
Price
$629.90
Collect 629 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (1) has been reached.


The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the-dark keypad, and a built-in flashlight help you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 make it a best value cable verifier for the professional installer!

Key Features
  • Detects Open, Shorts, Miswires, Reverses & Split Pairs
  • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses, and split pairs
  • Single-ended Testing for Shorts & Split Pairs
  • Measures Length in Feet/Meters
  • Identifies cable location on active ports using flashing Port Link Light
  • Easy to read, backlit LCD screen with large icons, glow-in-the-dark keypad, and built-in LED flashlight for use in dark areas
  • Identify up to 20 network or coax cable runs at a time
  • Audible Tone Generator, 4 selectable cadences
  • Tests Voice (6 wire), Data (8 wire) and Video (coax)
  • Works with Cable Tester Smart Remotes (#1-8)
  • Verifies continuity for multiple cable types (LAN, Phone, and Video)
  • Measures cable length, and distance to open and break specific wires, pairs, or all wires simultaneously
  • The master remote stored in the main unit
  • Voltage detection warning icon
  • Continuous loop test mode for troubleshooting
  • Auto-off and timed backlight in any mode for low power consumption and long battery life
  • Audible beep for additional feedback
Specifications
Display Large 2.75” Backlit Monochrome LCD
Dimensions 6.8” x 3.2” x 1.4” (17.3 x 8.1 x 3.5 cm)
Weight 10.8 oz. (305 grams) with battery and remote
Operating Temperature 0°C/32°F to 50°C/122°F
Storage Temperature -20°/-4°F to 60°C/140°F
Humidity 10% to 90%, non-condensing
Maximum Voltage between any two connector pins without damage RJ12/RJ45/F: 50V DC or AC
Battery Life 9V alkaline battery typical
  Standby: 4 years
  Active:425 hours
Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
Maximum RJ Cable Length Testing 0 to 1,000 feet (305 meters)
Minimum Cable Length for Split Pair Detection 1.5 feet (0.5 meters)
Maximum Coax Cable Length Varies depending on cable resistance varies
Low Battery Icon flashes when battery voltage falls below 6V
Measurement Technology Capacitance testing
Length Accuracy Without Length Constant ± 3% plus + 1 foot
Default Length Constant (Restored with power on reset) Voice (Twisted pair): 17.4 pF/ft
  Video (Coax): 16.5 pF/ft
  Data (Twisted pair): 15 pF/ft
What is in the box?
  • VDV MapMaster 3.0 Main Unit
  • ID only network remotes, #1-12
  • ID only coax remotes, #1-8
  • Cable assembly, RJ45 to Alligator clip
  • FTP patch cable, 5" Cat6, (2)
  • No-fault RJ12 cable (2)
  • RJ45 port saver
  • BNC/F adapter kit
  • 9V battery
  • Durable plastic case
GTIN: 849160010982
