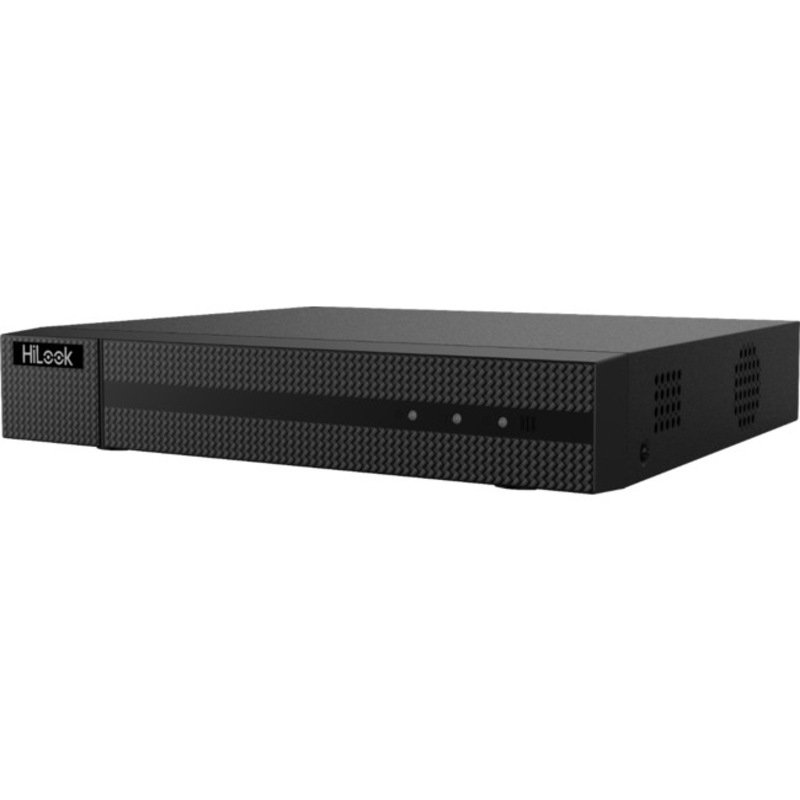

HILOOK 204U-K1 4Ch Hybrid 5 In 1 Network DVR 5Mp 1U H.265
10% Coupon
| Perimeter Protection | |
| Line Crossing | 2-ch |
| Detection/Intrusion Detection | Enhanced VCA mode on: 4-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 8 MP Lite mode is not enabled: |
| 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| When 8 MP Lite mode is enabled: | |
| 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: |
| When 8 MP Lite mode is not enabled: | |
| 8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | |
| *: 8 MP@8 fps is only available for channel 1 of DVR-204U-K1. | |
| When 8 MP Lite mode enabled: | |
| 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps | |
| *: 8 MP Lite is only available for DVR-204U-K1. | |
| Sub-stream: | |
| WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
| IP Video Input | 2-ch (up to 6-ch) |
| Enhanced IP mode on: | |
| 4-ch (up to 8-ch), each up to 4 Mbps | |
| Up to 8 MP resolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | 4-ch |
| BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection | |
| HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 K) |
| 4-ch via coaxial cable | |
| Audio Output | 1-ch, RCA (Linear, 1 K) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K) (using the audio input) |
| Synchronous Playback | 4-ch |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| USB Interface | Real panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| ≤ 1 kg (2.2 lb.) | |
Weight: 1.35
