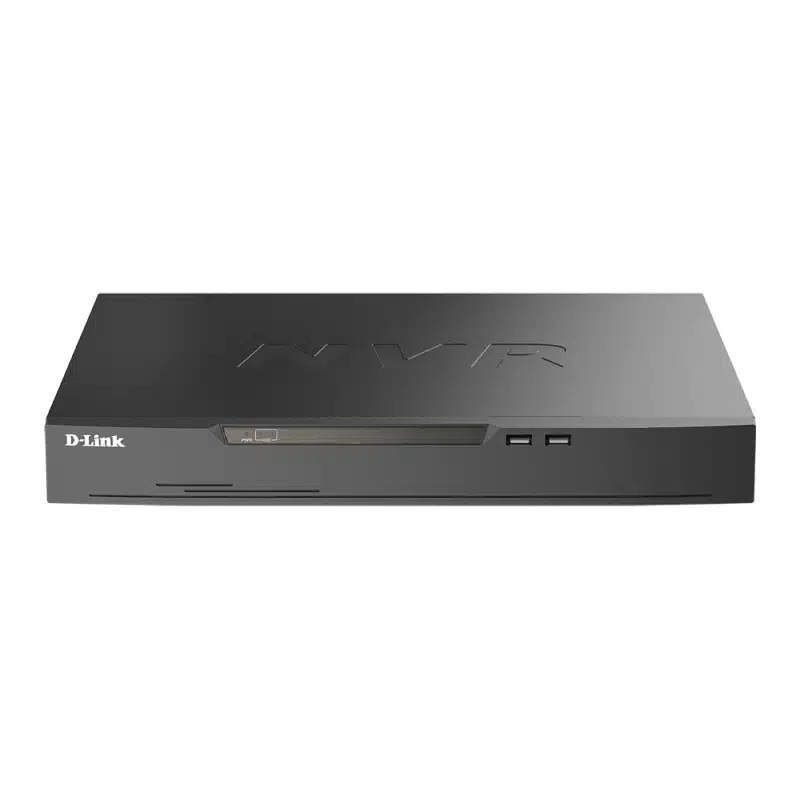

D-Link Justconnect Dnr-4020-16P 16 Channel Wired Video Surveillance Station - Network Video Recorder - Hdmi Less

D-Link Justconnect Dnr-4020-16P 16 Channel Wired Video Surveillance Station - Network Video Recorder - Hdmi Less

SOLD OUT

View streams from up to 16 Cameras in real time and in 4K for clearer footage than ever before. Storage is easily expandable, powerful tools make footage review and management of Cameras simple. NVR with HDMI/VGA output, 16 PoE ports, 2 Bays for HDDs
All-in-one solution that allows businesses to connect and power up to 16 cameras, and simultaneously record and view real-time video streams from a local network or remotely over the Internet.

All-In-One Solution

Standalone NVR solution with no need for additional computer or software

16-Channels

Simultaneously record and view real-time video streams from up to 16 cameras

PoE Capable

16 x 802.3af PoE ports with a total PoE power budget of 120 W

High Efficiency Video Coding

Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements

Dual Bay SATA

Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity

User-Friendly Interface

Provides 16 channels of simultaneous live view, recording, playback, and PTZ control

JustConnect+ App

Mobile app allows easy and remote access on a mobile device

Automated Surveillance.

The DNR-4020-16P supports multiple recording modes including continuous, scheduled and event-based recording. Motion detection or sensors, such as on a door or window, connected to the Alarm In ports can automatically initiate event-based video recording.

User-defined scheduled recording and continuous recording will automatically overwrite the oldest footage to ensure the surveillance system continues to record the most up-to-date footage.

User‑Friendly Interface.

Manage your surveillance network of up to 16 cameras from an easy-to-use GUI that provides real-time monitoring and controls.

The flexible Live View options allow you to see multiple cameras simultaneously with the option to view a single camera on full screen with two-way audio support. Advanced search features help administrators to find the specific footage they need quickly.

Extensive Monitoring and Recording Features.

he DNR-4020-16P’s intuitive interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Support for multiple encoding formats provides administrators with the flexibility to prioritise storage space and video quality.

Remote Access with Computer or Mobile Device.

The DNR-4020-16P allows users to remotely view and manage the surveillance system over the Internet via the web, giving administrators access to live view, recording, playback, and camera control.

What’s in it for you?

  • Live view and recording from up to 16 Cameras

  • 4K resolution support

  • Plug-and-Play installation

  • Continuous, scheduled, or event-based recording with automatic overwrite function

  • Motion detection and e-mail alerts

  • Standalone operation with video out for TV/Monitor (no computer required)

  • Supports highly efficient H.265 video format

  • 16 built-in PoE ports for easy Camera installation

  • Two bays for HDD, up to 16TB of video storage

Specifications:

Channel Number
  • 16 Channels
Operating System
  • Embedded Linux
Configuration Backup & Restore
  • Yes
Multilingual list (A~O)
  • Chinese (Simplified), Chinese (Traditional), English, French, German, Italian
Multilingual
  • 7 Languages
Multilingual list (P~Z)
  • Portuguese, Spanish
Compression Format
  • H.264/ H.265
Recording Performance
  • Maximum recording bitrate : 112Mbps/sec
Display Mode (View Layout)
  • 1, 4, 8, 9,16 Split Screen
Authorization (User Privilege)
  • Yes
PTZ Control (Mechanical/ Optical)
  • Yes
Auto Scan (Camera View Rotation)
  • Yes
Auto Pan
  • No
Digital PTZ Control
  • Yes
Preset Control
  • Yes
Auto Patrol
  • No
Full Screen
  • Yes
Snapshot
  • Yes
Two-way Audio
  • Two-way Audio
Camera OSD (On Screen Display)
  • Yes
Multiple View (Duplicate Camera)
  • Yes
Recording Type
  • Schedule/ Manual/ Alarm In/ Motion
Audio Recording
  • Yes
Pre-recording/ Post-recording Period
  • Post-rec: 60 sec
Edge Motion Detection (by Camera)
  • Yes
Auto Recycling (Disk Capacity)
  • Yes
Simultaneously Playback Channel
  • 16 Channel
Playback Mode
  • Video Control (Play, Stop, Pause, Forward, Backward, Next Frame, Rewind)
Audio Control
  • Yes
Video Export File Format
  • MP4
Digital Zoom Ratio
  • 4x
Image Export File Format
  • JPG
Scheduled Recycling (Days)
  • Yes
Video Search (Factor)
  • Yes (Time, Camera)
Smart/ Intelligent Search (Factor)
  • No
Tamper-Proof (Digital Watermark)
  • No
Event to Email
  • Yes
Event to Alarm
  • Yes
Event by Disk Full
  • Yes
Event by Signal Lost
  • Yes
I/O Control
  • Yes
Client Viewer
  • Browser/ JustConnect+ APP
Central Viewer
  • No
Playback Viewer
  • Browser
Secondary Streaming Profile
  • Yes
Remote Live View Channel (Max)
  • Maximum 8 users
Concurrent Channel per Client (Max)
  • 16 Channels
Remote Playback Channel (Max)
  • 16 Channels
E-Map Layer
  • N/A
E-Map Indicator
  • N/A
E-Map Image Format
  • N/A
Camera Preview
  • N/A
Supported Camera
  • D-Link IP Cameras
Auto Surveillance VLAN Support
  • Yes
Auto Boot-Up (Power Recovered)
  • Yes
HDD Bay
  • 2 x 3.5" SATA HDD, Max. 16TB
Network Interface
  • 1 x Gigabit Port, 16 x 100BASE-T PoE port (802.3af )
Dimensions (mm)
  • 372 × 310.5 ×46.5 (W x D x H) mm
Weight (g)
  • 2100
Power Consumption (watts)
  • 143 (Max) 0 (Standby)
Operation Temperature
  • 0 to 40°C (32 to 104°F)
Playback System
  • No
Backup System (Video Clips)
  • No
Verification Tool (Digital Watermark)
  • No
NVR Search (Discovery)
  • No
Audio Compression Format
  • G.711, AAC
Network Service Protocol
  • IPV4, ARP, TCP, UDP, ICMP , DHCP Server/Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP/HTTPS Server, RTP, RTCP, RTSP, IP filtering, UPnP, Bonjour (mDNS + DNS-SD), SNMP v1/v2c/v3, ONVIF
GTIN: 790069458569
