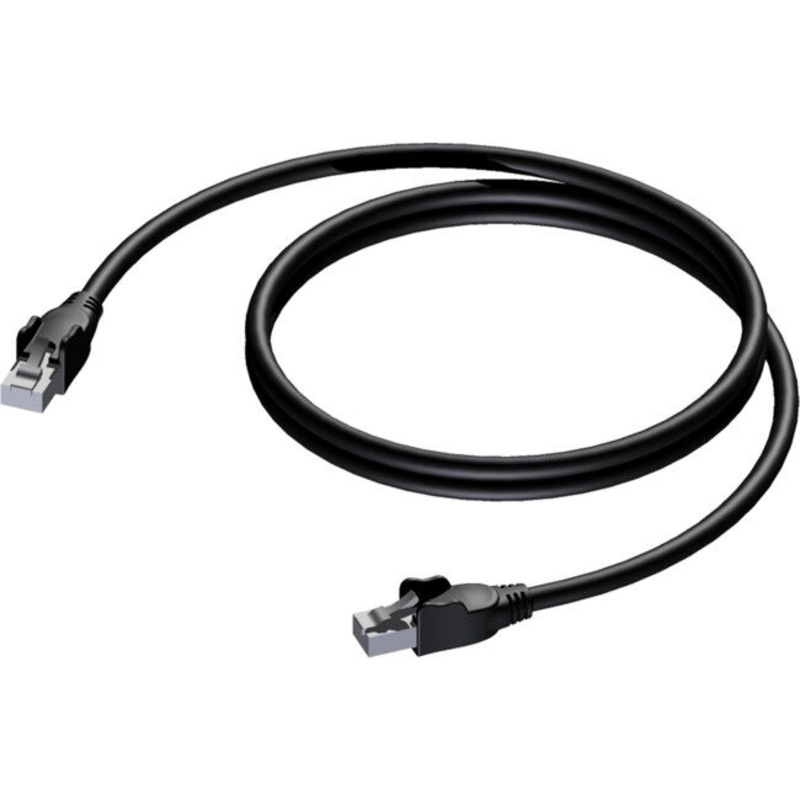

The BSD550U is a basic series CAT5E U/UTP networking cable, offering reliable interconnections in a wide variety of applications, ranging from general purpose office computer systems to digital AV network systems.
Both ends are terminated by male RJ45 connectors with gold plated contacts.
The conductor section consists of 4 pairs stranded 26 AWGconductors guaranteeing an optimal signal transmission.
The low-smoke & halogen free jacket material allows usage in installations in public and other demanding buildings.
Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
Supports Dante, Cobranet, Ethersound, HdbaseT and other AV network protocols
Ethernet cables are commonly equipped with and RJ45 connector and are used to create a local area network between computers or between other professional devices.
The cables are divided in different groups based on theirmaximum transfer speeds.
CAT5E can handle a gigabit Ethernet network (1000Mbps at 100Mhz) and is designed to reduce crosstalk better that CAT5.
Apart from being the main physical protection for the cable, the outer Jacket also provides a smooth and safe touch for its users.
To bring the best user experience and satisfaction, someouter jackets are designed to excel in a specific function.
It is because of this reason that PROCAB, developed cables that can aid in the instalment or that have better winding and unwinding properties.
For safety regulations the outer jacket can also consist of materials that emit very low levels of smoke or will self-extinguish when exposed to flames.
LSHF stands for Low Smoke, Halogen Free.
This term refers to Halogen free flame retardant thermoplastic material used as a sheathing compound in cables.
In the event of a fire or when exposed to high levels ofheat, the chemicals in the jacket removes heat from the flame, whilst the reaction produces water as a by-product to help quench the flame.
As a result, the cable will emit very low levels of smoke, and non-toxic levels of poisonous halogen gasses.
PHYSICAL CHARACTERISTICS | |||
---|---|---|---|
Type of cable | U/UTP CAT5E Networking cable | ||
Inner conductor | Material | BC 7 x 0.16 mm (Ø) (OFC) | |
Section | 0.14 mm | ||
American Wire Gauge | 26 AWG | ||
Insulation | Material | HDPE 0.92 mm (Ø) | |
Colours | Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown | ||
Conductor twisting | Lay length ≤ 30 mm | ||
Outer jacket | Colours | Black | |
Material | LSHF 5.3 mm (Ø) | ||
Connection type | RJ45 male to RJ45 male |
ELECTRICAL CHARACTERISTICS | ||
---|---|---|
Dielectric strength | 1.5 (KV / 1 min. DC) | |
Max. Delay / Skew | 45 (ns / 100 m) | |
Rated voltage | 72 V | |
Nom. Velocity of propagation | 65 % | |
Characteristic impedance | 100 Ω ± 10 Ω | |
Max. conductor | DC resistance | 130 (Ω / Km) |
DC resistance unbalanced | 5 % | |
Nom. mutual capacitance | ≤ 5.6 (nF / 100 m) | |
Pair to ground capacitance unbalance | ≤ 330 (nF / 100 m) |
