WIRELESS | |
---|---|
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 3-5 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | Medium Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Silmultaneously communicates with multiple MU-MIMO clients |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | Qualcomm CPU |
Ethernet Ports | 2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons | Reset Button |
Power | 12 V ? 1.5 A |
SECURITY | |
---|---|
WiFi Encryption | WPA WPA2 |
Network Security | SPI Firewall Access Control |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management | Deco App |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 3.6 × 3.6 × 6.4 in (90.7 × 90.7 × 162.3 mm) |

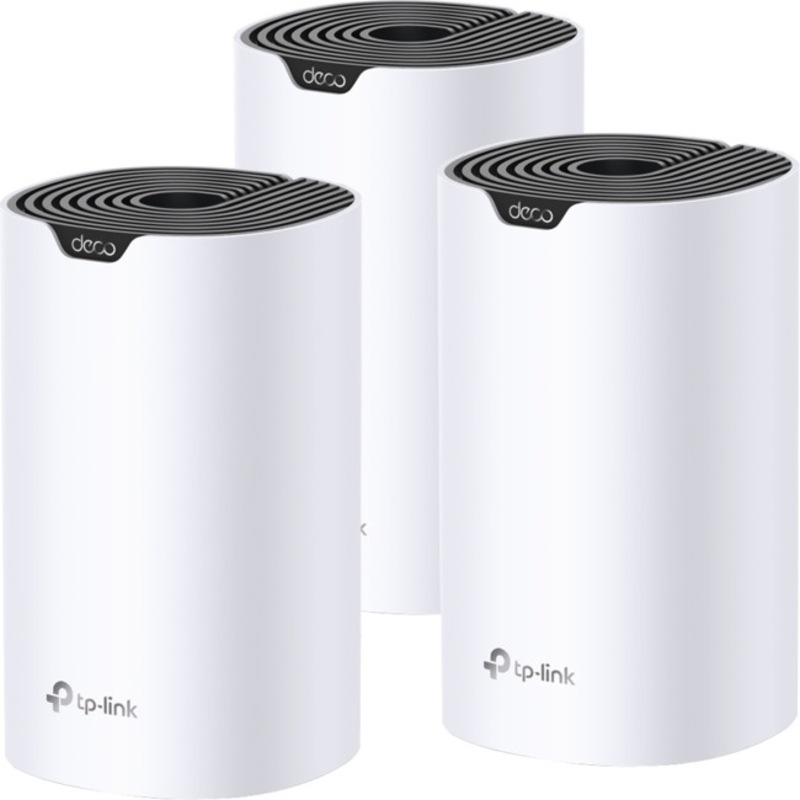

Package Contents | Deco S4 (3-pack) 3 Deco S4R Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Deco S4 (2-pack) 2 Deco S4R Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco S4 (1-pack) 1 Deco S4R Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
OTHERS | |
---|---|
System Requirements | Android 4.4 or later iOS 9.0 or later |
Certifications | CE, FCC, RoHS |
Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
