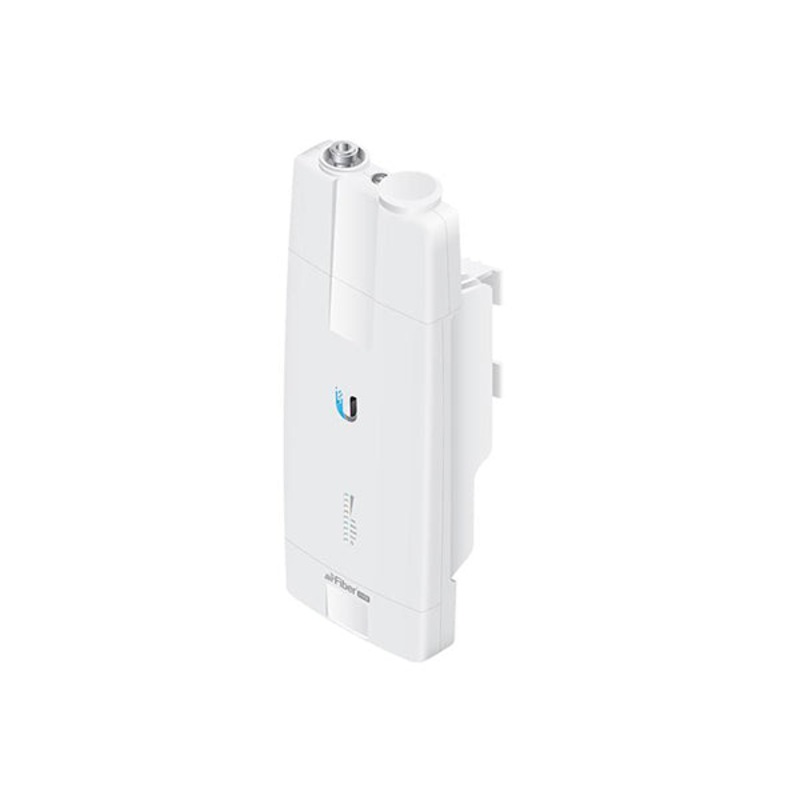

UBIQUITI AIRFIBERX 11GHZ FULL-DUPLEX CONNECTORISED RADIO
Ubiquiti airfiberx 11ghz full-duplex connectorised radio. Ubiquiti networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing, by introducing the airfiber af-11fx, a radio purpose-built for outdoor ptp bridging and carrier-class network backhauls using the licensed 11 ghz radio band.
The af-11fx breaks free from the congested 5 ghz band to help meet the growing need for broadband capacity. For maximum flexibility, the airfiber af-11fx works with the ubiquiti af-11g35 antenna, or with most third-party antennas using an optional adapter kit (not included).
The af-11fx gives exceptional performance compared to other 11 ghz radios in its price range. Unlike other products that use adaptations of wi-fi-based designs, the af-11fx is specially engineered for the 11 ghz band, with a custom modem and radio design that are optimised for the efficient transport of data.
The airfiber af-11fx can use single (siso) or bonded (mimo)* channels, depending on your specific licensing requirements. The af-11fx also features different channel width sizes to suit your deployment needs, and you can independently configure tx and rx channel frequencies.
The af-11fx features a unique modular duplexer design to suit multiple frequency configurations. Each af-11fx radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use in the 10.7 - 11.7 ghz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.
FEATURES
The AF-11FX offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band
Overall customer experience and system capacity is enhanced with FDD performance
The AF-11FX features a unique, built-in, rain-fade mitigation strategy for increased link robustness
The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges
SPECIFICATIONS
Operating Modes: Master / Slave
Interfaces: (1) 10/100/1000Mbps Data Port; (1) 10/100Mbps Management Port; (4) SMA
Weatherproof: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1); (2) N-Type Waterproof, One per Duplexer
PoE In: Yes, 38-56VDC
Operating System: Ubiquiti airOS F
Max Power consumption: 36W
Pole Diameter: 30-50mm
Dimensions: 327 x 112 x 86 mm
IP Rating: IP54
PACKAGE CONTENTS
1 x 3 Pin Clover Lead
1 x 50VDC, 1.2A PoE Gigabit Adapter
1 x Pole Mounting Kit Included
