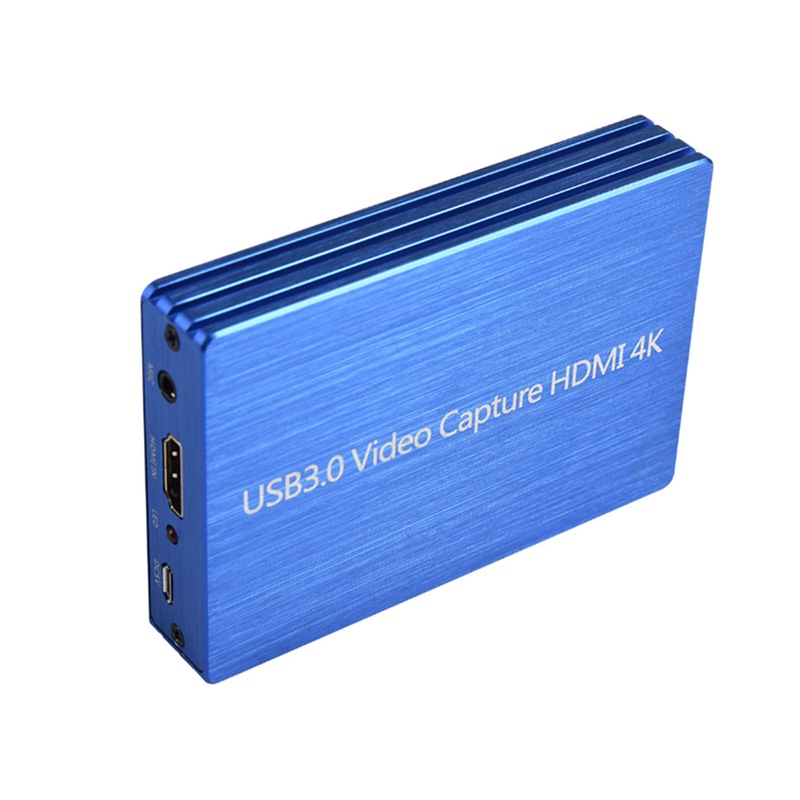

4K HDMI To USB 3.0 Video Capture Card Dongle 1080P 60fps HD Video Recorder Grabber For OBS Capturing Game Game Capture Card Live

Description:

HDMI to USB3.0 video capture dongle, easy to carry, with excellent performance, superior compatibility, simple installation and many other functions.

It captures an HDMI 4K 30Hz input ; Compatible with for Windows, Linux, Mac OS X and USB 3.0 interfaces, compatible with many USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 via USB 3.0 interface; HDMI video capture conforms to UVC and UAC standards, no need to install drivers and settings, real PnP.

Feature:

1. No need to install drivers, it is real PnP.

2. Compatible with for Windows, Linux, OS X operating system.

3. USB3.0, speed 300-350MB/s, compatible with USB 2.0.

4. The video and audio process is done by the dongle and does not occupy the CPU.

5. It can capture a single channel HD HDMI video signal.

6. It can automatically detect the input video format and automatically adjust the set output size and frame rate.

7. Input and output video signals up to 1080p / 60 Hz.

8. It is compatible with UVC video capture and YUV 422 video output.

Specifications:

Host interface: USB3.0, 300-350MB / s, USB2.0, 40MB / s

Input interface: HDMI interface

DMI input format: 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080P24/ 25/30 /60

Supported resolutions:

640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576

Frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps

Audio and video capture standards for UVC and UACSupport for OS Windows 7 Windows Server 2008 R2 Linux (kernel version 2.6.38 and higher) OS X (10.15 and above)Software compatibility: For Windows Media Encoder (Windows) / Adobe Flash / Media Live Encoder (Windows, OS X) / Real Producer Plus (Windows) / VLC (Windows, OS X, Linux) / QuickTime Broadcaster (OS X) / QuickTime playback (OS X)/Wirecast (Windows, OS X)/Potplayer (Windows), etc.System Requirements: Laptop I7 8G memory 1G video memory and upgrade Desktop I5 8G memory 1G video memory and upgradeInterface compatibility: DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)

Power consumption: ��2.5W

Working temperature: 0��C ~ 50��C

Storage temperature: -20��C ~ 70��C

Storage humidity: 5%-90%

Product size: 102*70*19mm/4.16*2.76*0.75in

Notes:

Please allow 1-3mm differs due to manual measurement.

Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

You'll receive: 1 x USB Capture Card

1 x Micro USB Power Cable (Not including Plugs )

1 x HDMI Cable

1 x USB Data Cable
