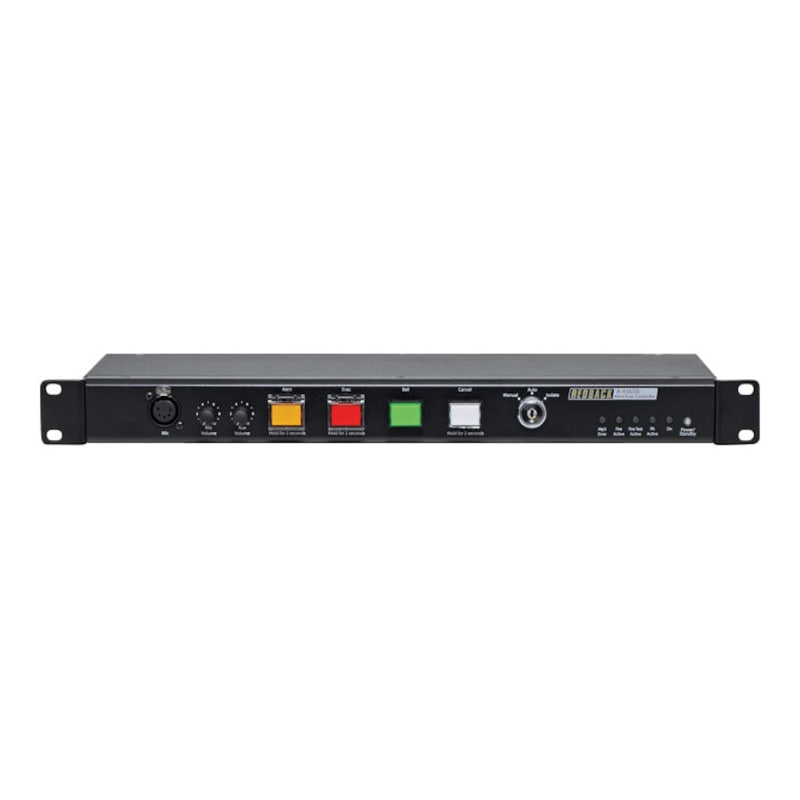

Building Emergency Alert/Evacuation Controller

Building Emergency Alert/Evacuation Controller

Hurry! 3 items left!

Price	$968.28
	Collect 968 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

This Evacuation controller is easy to operate and is designed around industry standard building emergency alert/evacuate requirements. When connected to a paging system amplifier, building occupants can be alerted and/or evacuated in the event of an emergency e.g.: fire, gas leak, bomb scare, earthquake. Auto or manual modes are selected by the front panel key switch which uses an industry standard 003 key. Alert & evac switches are fitted with safety covers to prevent accidental operation. Also inbuilt, is a Bell function tone for signalling lunch breaks, start of class etc.

The Alert, Evacuation, Bell, Fire Test and Fire tones and Emergency Messages are all MP3 based and stored on a Micro SD card which is accessible from the rear of the unit. The Alert, Evacuation and bell tones and cancel function are triggered by the front switches when in manual mode or by the rear terminal contacts when in Auto mode for remote activation i.e. a clock, remote switch or remote wall plate. These functions can also be activated by optional wall plates and paging consoles. The Fire tone is activated from the rear Fire trigger or from the A 4597 remote plate. The Fire Test tone is activated by the A 4597 remote plate only.

Provision has been made for a BGM (background music) source to be played through the controller. BGM is automatically muted when any other function is operated. A mic input is provided on the front panel and paging is also available through the A 4564 paging console. These can be used for either general or emergency paging and overrides all other functions. A pre-announcement chime is available on the microphone input. This can be switched on or off via external dip switches. Switched 24V Out connections are provided for all emergency and paging conditions. These contacts are for connection of override relays in remote volume controls, warning strobes, bells etc.

Package Contents
A 4565B Alert/Evacuation Controller
24V DC 2A Plugpack
Instruction Booklet

Features

Tones conform to AS 1670.4
Standard 1U 19” rack mount case
Interfaces with Fire Indicator Boards
Remote operation of Alert, Evac, Chime, Fire Test, Fire Alarm & Cancel tones
MP3 based tone playback (with backup hard coded Alert, Evac and Bell tones)
24V DC operation
Auto/Manual/Isolate keyswitch
Key switch to 003 standard
Local operation of Alert, Evac and PA
MP3 based Voice Over messages for Alert and Evac cycles
Microphone socket for PA use
Provision for BGM (back ground music)
Provision for Auxiliary input with front volume control
Bell chime facility
Switched 24V DC output for override relays on volume controls
Switched 24V DC output for strobe operation for Alert mode
Switched 24V DC output for strobe operation for Evac mode
Switched 24VDC output for bell mode
On-board timer for automatic Alert to Evac switchover, adjustable from 30secs to 7.5min in 30 second increments
Externally operated inputs are activated by switching to ground
Auxiliary level output
Suitable for any amplifier with an auxiliary input
10 Year Warranty
Australian Designed and Manufactured

I/N: 17678
Barcode: 9321758249581
Shipping Weight: 3.20000Kg
Packaging Sizes
EACH: 1

General
Output Level: 0dBm
Distortion: 0.01%
Frequency Response: 140Hz - 20kHz
Muting: Via Microphone Switch Contact
Audio Storage: Micro SD 16GB (max)
Indicators: Power On, MP3 Error, Fire Active, Fire Test Active, PA Active
Power Supply: 24V DC
DC Fuse: 2A (M205)
Colour: Black
Weight: 1.6kg
Dimensions: 482W x 125D x 44H
Signal To Noise Ratio
Aux/Music Input: -90dB (typically)
Alert/Evac/Chime: -70dB (typically)
Input Sensitivity
Mic: 2mV (balanced)
BGM/Aux Input: 300mV (unbalanced)
Output Connectors
Audio Output: RCA Stereo Socket
Switched 24V DC Out: Screw Terminals
Alert 24V DC Out: Screw Terminals
Evac 24V DC Out: Screw Terminals
Bell 24V DC Out: Screw Terminals
Fire 24V DC Out: Screw Terminals
PLEASE NOTE: Output loads limited to 120mA
Input Connectors
Mic: 5 Pin XLR
Aux Input: RCA Stereo Socket
24V DC Power: Screw Terminals
24V DC Power: 2.1mm DC Socket
Remote Alert, Evac, Bell, Fire, Cancel: Screw Terminals
Controls
BGM Input: Rear Volume
Bell, Evac, Chime, Fire Tones: Rear Volume
Voice Over/PA Mic: Rear Volume
Mic Input: Front Panel Volume
Auxiliary Output: Front Panel Volume
Power: On/Off Switch
Mode Selection: Keyswitch 003 Standard
Alert Switch: Illuminated Push Switch
Evac Switch: Illuminated Push Switch
Bell Switch: Illuminated Push Switch
Cancel Switch: Push Switch

SKU: 49.1131.B4565C_Bmuspojdt
