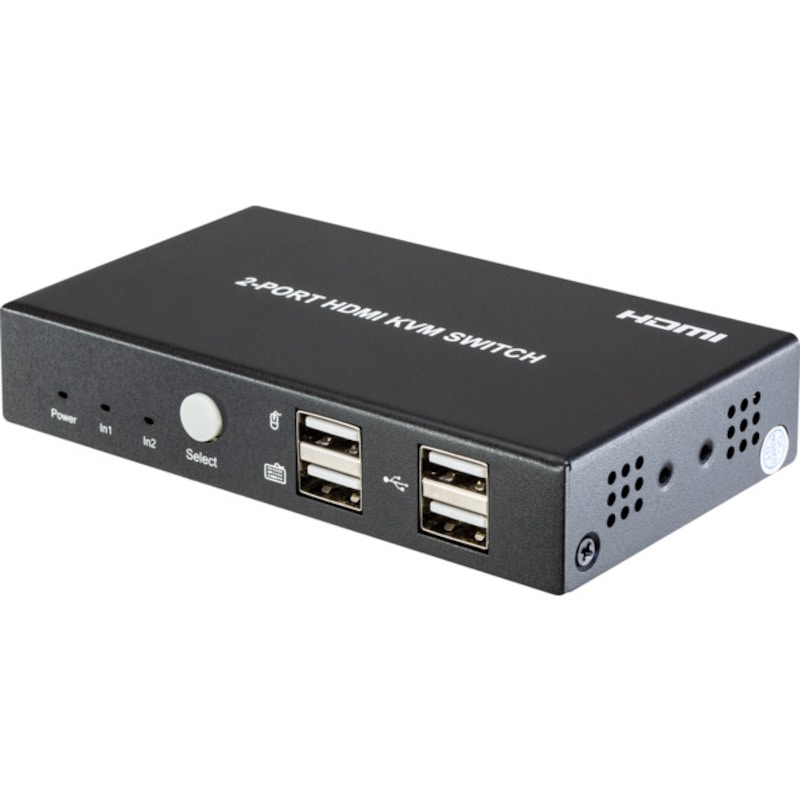

PRO2 KVM2S 2 Port 4K HDMI Kvm Switch 4K 30Hz Active

PRO2 KVM2S 2 Port 4K HDMI Kvm Switch 4K 30Hz Active

Be the first to review this product

Price	$66
	Collect 66 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

This 2 in 1 out switch box allows controlling two computers from one set of keyboard, video monitor, and mouseto save your cost and space. It could switch and control between 2 NVRs or 1 PC and 1 NVR. It supports the maximum video resolution up to 4K 30Hz, RGB 4:4:4, 8 Bit. The USB2.0 standard is compatible with most of the devices on the market.

Unlike the other passive KVM switch on the market, this KVM2S switch is active and supplied with a power supply to sustain the stability and performance when USB2.0 ports connect to the devices, not the keyboard and mouse, like theexternal hard drives.
Switch the KVM inputs or auto cycle switching via the keyboard hotkey features. Easily adjust the auto switch timewhen you are monitoring two NVR or other security devices.

Features

Maximum resolution support 4K30Hz RGB4:4:4, 8 Bit
Extended USB interface on the front panel support users to connect a USB keyboard, mouse, USB flash disk, USB printer, and other peripherals
Operating system supports Windows 2000/2006/XP/WIN7/WIN8/WIN10, Ubuntu, Mac OS, etc.
Supports uncompressed PCM Audio, compressed Dolby,DTS Audio, sampling rate maximum support 192KHZ, support 7.1channel when it is only purely used as 2 in 1 out HDMI switch.
HDCP 2.2/1.4 Compliant
Support Auto Timing switching
Support keyboard's hotkeys to control the KVM switch
Low power consumption, 1.7W only when it connects to HDMI, keyboard, and mouse. (Although there is power from the USB Type B port, it is still strongly suggested to use it with the power supply.)
Support the wired or wireless keyboard and mouse. (wireless keyboard mouse suggest using one of the two USB2.0ports)
Supply with the mounting ears

Resolution I/P Resolution Color Space Support 50Hz

720*576

1280*720

1920*1080

59.97/60Hz

720*480

1280*720

1920*1080

29.97/30Hz

1280*720

1920*1080

3840*2160

24Hz

1280*720

1920*1080

3840*2160

25Hz

1280*720

1920*1080

3840*2160

VESA resolution (RGB 8bit)

Resolution	Refresh Rate	Copy mode
800×600	60HZ	v
1024×768	60HZ	v
1280×768	60HZ	v
1280×1024	60HZ	v
1600×1200	60HZ	v
1680×1050	60HZ	v
1920×1080	60HZ	v
1280×720	60HZ	v
1360×768	60HZ	v
1920×1200	60HZ	v
3840×2160(YUV420)	60HZ	v

Input/output line length test

Input
Output 5m 8m

5m
v

v

8m
v

v

Note: If the video source is 4K 30Hz, it suggests using the 5M HDMI cable or shorter, as the various quality HDMI cables on the market. The KVM2S has been tested with the standard HDMI2.0 quality cable. The maximum length for the HDIM input is 8m. However, 5m for the HDMI output.

Keyboard hot-key operation

Press the "Ctrl" key twice to enable the hotkeyfeature when it is in operational mode.

Hot-key operation	Switch function
Ctrl + Ctrl + Page Up	Switch to another input
Ctrl + Ctrl + Page Down	Switch to another input
Ctrl + Ctrl + Space	Automatic cycle switching, the default switching time is 6 seconds, can be adjusted
Ctrl + Ctrl + +/-	Increase or decrease the auto switching time by 1second
Ctrl + Ctrl + F12	Turn the built in buzzer on or off
Ctrl + Ctrl + 9	Cross mode (double click mouse wheel + mouse leftclick to switch)
Ctrl + Ctrl + 1~2	Select PC port 1~2 port directly
Ctrl + Ctrl + 0	Sync mode, sync mouse and keyboard to control allthe PCs

Notes:
For example, to adjust the switching time to 10 seconds, press "Ctrl Ctrl +" 4 times. (6s+4s=10s)
The buzz will hear when the hot-keys are pressed, which will indicate setup success or not. For example, press the "Ctrl" key twice then the nominated hot-key will hear two buzzes following the first "Ctrl" key.
To power cycle the switch, you should unplug everything from the unit, including all HDMIs, mouse, keyboard, and power supply.

What is in the box?

KVM2S x 1 pc
USB 2.0 A plug to B plug cable x 2pcs
DC 5V 1A power supply x 1pc
Manual instruction x 1pc
Mounting ear and screw x 1 pair

Weight: 0.55
