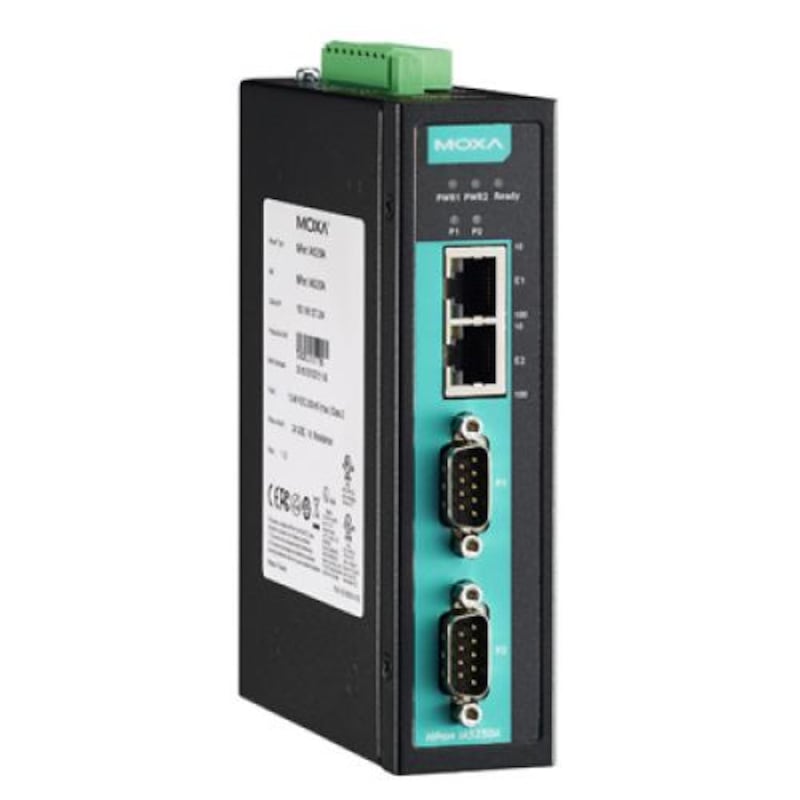

MOXA NPort IA5150A 1-port RS-232/422/485 with serial/LAN/power surge protection, 2X10/100BaseT(X) ports with single IP, operating temperature, industrial automation device server [NPORT IA5150A]

MOXA NPort IA5150A 1-port RS-232/422/485 with serial/LAN/power surge protection, 2X10/100BaseT(X) ports with single IP, operating temperature, industrial automation device server [NPORT IA5150A]

Best Price in the Last 14 Days

Hurry! 4 items left!

Price	WAS $471.94 'WAS' price is the previous lowest price in the last 14 days. $208.76 Save $263.18
	Collect 208 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

MOXA NPort IA5150A 1-port RS-232/422/485 with serial/LAN/power surge protection, 2X10/100BaseT(X) ports with single IP, operating temperature, industrial automation device server

The NPort IA5000A device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing and with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
Cascading Ethernet Ports Make Wiring Easy
The NPort IA5000A device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or another Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.
Redundant Power Inputs
The NPort IA5000A Series of device servers have two power inputs that can be connected simultaneously to live DC power sources. If one power source fails, the other source takes over automatically. Redundant power inputs help ensure uninterrupted operation of your device server.
Relay Output Warning and Email Alerts
The built-in relay output can be used to alert administrators when the network is down, when power failure occurs, or when there is a change in the DCD or DSR serial signals. An email warning can also be issued when an abnormality is detected. These functions are valuable tools that enable maintenance engineers to react promptly to emergency situations.
Surge Protection for Serial, Ethernet, and Power
Moxa’s leading-edge surge immunity solution, which is applied to the NPort® IA5000A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This advanced surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and resist electrical interference, such as in oil, gas, and power automation applications.
Industrial-grade Certification
To ensure safe and reliable operation in industrial environments, the NPort® IA5000A device servers have obtained various industrial certifications, including an IP30 rating for mechanical protection and UL 508 safety certification for industrial control equipment. In addition, these device servers are UL/cUL listed (for Class 1, Division 2, Groups A,B,C,D), ATEX Class 1 Zone 2, and IECEx compliant for use in hazardous locations.

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
Supports 2 IP addresses
Auto MDI/MDI-X connection
Magnetic Isolation Protection
1.5 kV (built-in)
Ethernet Software Features
Configuration Options
Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet Console
Management
ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter
IGMP v1/v2
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API
Android 3.1.x and later
Time Management
SNTP
Security Functions
Authentication
Local database
Encryption
HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Serial Interface
Connector
DB9 male for RS-232
Terminal block for RS-422/485
No. of Ports
1
Serial Standards
RS-232, RS-422, RS-485
Operation Modes
Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
Baudrate
Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Power Parameters
Input Current
220 mA @ 12 VDC
Input Voltage
12 to 48 VDC
No. of Power Inputs
2
Power Connector
Terminal block
Physical Characteristics
Housing
Metal
Dimensions
36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)
Weight
475 g (1.05 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
0 to 60°C (32 to 140°F)
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
- MPN: NPORT IA5150A

MPN: NPORT IA5150A
